HYDRAFORCE
5029392

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

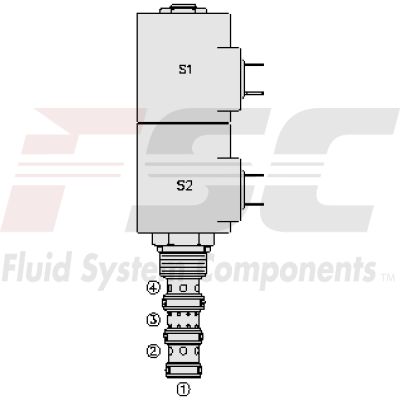

The Hydraforce SV10-47AM-8T-N-12DL/W (5029392) is a robust solenoid-operated, 4-port, 3-position, direct acting spool type screw-in hydraulic cartridge valve designed for versatile hydraulic flow management. This model efficiently handles flow transitions between ports in various hydraulic applications. When de-energized, it blocks cylinder ports while allowing flow from port 3 to port 1. Energizing coil 1 facilitates flow from port 3 to port 2 and from port 4 to port 1, whereas energizing coil 2 allows flow from port 3 to port 4 and from port 2 to port 1. This configuration makes it suitable for circuits with unequal work port flows due to cylinder ratios, directing higher return flows preferably to port 2. The SV10-47AM-8T-N-12DL/W is engineered for durability and performance, featuring a continuous-duty rated solenoid and a hardened precision spool and cage that ensure extended operational life. It offers optional coil voltages and terminations along with manual override options. The valve’s waterproof E-Coils are rated up to IP69K, ensuring reliable operation in demanding environments. Its efficient wet-armature construction allows all ports to be fully pressurized. Moreover, the unit's cartridges are voltage interchangeable with a unitized, molded coil design that fits an industry-common cavity (VC10-4). This model supports a wide range of temperatures and fluid types, accommodating mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. The valve operates effectively within a pressure range up to 250 bar (3625 psi) with proof pressure at 344 bar (5000 psi) and burst pressure reaching up to 779 bar (11300 psi). It is ideal for applications requiring precise control over hydraulic fluid direction and pressure in complex systems.
