- Material:5030028
- Model:SV10-31M-0-N-24DL/W SOLENOID VALVE

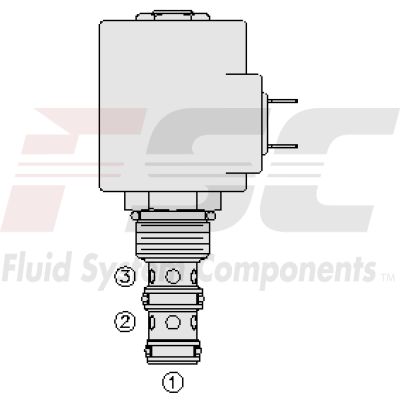

- Summary:SOLENOID CARTRIDGE VALVE SPOOL, 3 WAY
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5030028 (5030028) is a solenoid-operated, direct acting, spool type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This unit features a continuous-duty rated coil and a hardened precision spool and cage that ensure long life and reliability. Its efficient wet-armature construction enhances its operational efficiency, while the unitized, molded coil design contributes to its durability and consistent performance. The 5030028 valve boasts versatile application capabilities as all its ports can be fully pressurized, making it suitable for a diverse range of hydraulic tasks. Additionally, it offers optional coil voltages and terminations to accommodate different system requirements. The availability of manual override options provides added control flexibility, enhancing operational safety and convenience. Moreover, this model is designed with an industry common cavity which facilitates easy installation and maintenance. The optional waterproof E-Coils are rated up to IP69K, providing superior protection against dust and water ingress, making them ideal for use in harsh environmental conditions. This combination of features makes the Hydraforce 5030028 an effective solution for managing fluid power in sophisticated hydraulic systems efficiently.
The Hydraforce 5030028 (5030028) is a solenoid-operated, direct acting, spool type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This unit features a continuous-duty rated coil and a hardened precision spool and cage that ensure long life and reliability. Its efficient wet-armature construction enhances its operational efficiency, while the unitized, molded coil design contributes to its durability and consistent performance. The 5030028 valve boasts versatile application capabilities as all its ports can be fully pressurized, making it suitable for a diverse range of hydraulic tasks. Additionally, it offers optional coil voltages and terminations to accommodate different system requirements. The availability of manual override options provides added control flexibility, enhancing operational safety and convenience. Moreover, this model is designed with an industry common cavity which facilitates easy installation and maintenance. The optional waterproof E-Coils are rated up to IP69K, providing superior protection against dust and water ingress, making them ideal for use in harsh environmental conditions. This combination of features makes the Hydraforce 5030028 an effective solution for managing fluid power in sophisticated hydraulic systems efficiently.
Unit weight:
0.18 kg (0.39 lb)
Internal wetted surface area:
158 cm² (24.5 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: 22.7 lpm (6 gpm) Maximum internal leakage: 164 ml/min (10 in³/min ) At from port 3 to 2 (valve energized); 207 bar (3000 psi) 82 ml/min (5 in³/min ) At from port 3 to 2 (valve de-energized) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-A31E-H-J-L-M A Position Sensor Option A 31 Standard A P31 Position Indicator Switch E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO |
Seal kit:
SK10-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
