HYDRAFORCE
5039090

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

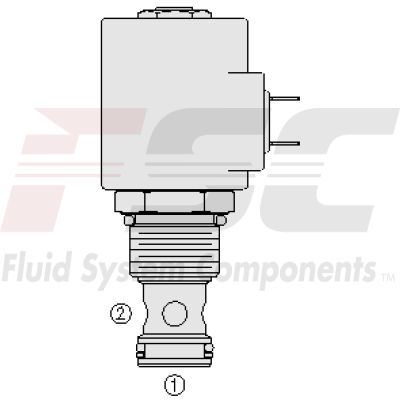

The Hydraforce SP12-20-0-N-00 (5039090) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve designed for low leakage blocking and load-holding applications. This valve functions as a check valve when de-energized, allowing flow from one port to another while blocking the reverse flow. Upon energization, the poppet lifts to open the flow path in the opposite direction. The SP12-20-0-N-00 features a continuous-duty rated coil and efficient wet-armature construction. It also includes options for manual override and waterproof E-Coils rated up to IP69K for enhanced environmental protection. The valve is engineered with an industry-common cavity which simplifies installation processes across various applications. It also offers a metering option that allows for precise control of flow rates. The unit is designed to operate efficiently with mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. It can handle operating fluid temperatures ranging from -40°C to 120°C depending on the seal material used (Buna N or fluorocarbon). The SP12-20-0-N-00 supports maximum operating pressures up to 240 bar (3500 psi) and features robust corrosion protection that withstands up to 96 hours of salt spray per ASTM B117. This valve's compact design (.45 kg weight), combined with its versatile performance characteristics, makes it suitable for a wide array of hydraulic applications requiring reliable flow control and load holding in both mobile and industrial settings.
