HYDRAFORCE
5042945

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

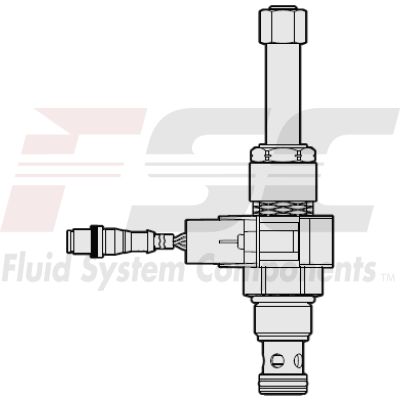

The Hydraforce 5042945 (5042945) is a solenoid-operated, 2-port, normally closed, poppet-type, screw-in hydraulic cartridge valve. It is engineered primarily to act as a load holding or blocking valve in various applications where low internal leakage is crucial. In its default state when de-energized, the 5042945 functions as a check valve, facilitating flow from port 1 to port 2 and simultaneously blocking reverse flow. Upon energization, the valve's poppet lifts to create a path from port 1 to port 2 while significantly restricting flow from port 2 to port 1. This model is distinguished by its integral position sensor that provides real-time feedback on the valve's status, indicating whether it has shifted. It features a continuous-duty rated coil and a hardened seat that enhances durability and minimizes leakage. The cartridge's efficient wet-armature construction ensures reliable operation under various conditions. The unit offers optional coil voltages and terminations for flexibility in application. Moreover, the Hydraforce 5042945 includes waterproof E-Coils rated up to IP69K, ensuring protection against dust and water ingress during harsh environmental conditions. Its unitized, molded coil design along with solenoid tubes and coils that are salt-spray rated for up to 96 hours contribute to its robustness and suitability for demanding applications. Each component of this valve series adheres strictly to NFPA specification T2.6.1., with rigorous testing conducted at both verification level of 90% and an assurance level of 99%. These features make the Hydraforce 5042945 an optimal choice for hydraulic systems requiring precise control with dependable performance.
