HYDRAFORCE
5049034

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

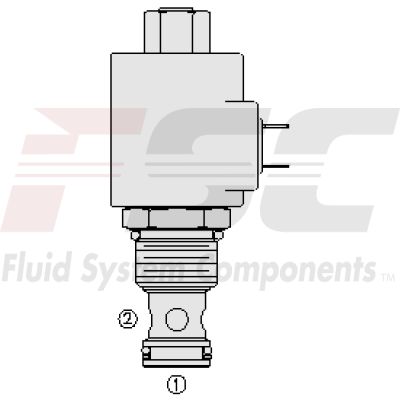

The Hydraforce 5049034 (5049034) is a solenoid-operated, 3-way, normally open, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to function as a load holding or blocking valve in systems that demand minimal internal leakage. When the SV 5049034 is de-energized, it allows fluid flow from port 1 to port 2 while severely restricting flow from port 2 to port 1. Upon energization, the valve’s poppet closes against its seat effectively blocking flow from port 1 to port 2 and acting as a check valve that permits flow from port 2 to port 1 after overcoming the solenoid force. This model features a continuous-duty rated coil and a hardened seat which ensures longevity and maintains low leakage levels. It offers optional coil voltages and terminations to accommodate different system requirements. The efficient wet-armature construction of the SV 5049034 enhances its reliability and performance. Additionally, the cartridges are voltage interchangeable which provides flexibility in usage. The unitized, molded coil design contributes to its robustness and durability. A manual override option is available for situations requiring manual operation of the valve. Moreover, this model can be equipped with optional waterproof E-Coils that are rated up to IP69K, ensuring protection against ingress of dust and high temperature high-pressure water jets. This makes it particularly suitable for harsh environmental conditions. The SV 5049034 also boasts a cost-effective cavity design, further enhancing its appeal as an economical option for hydraulic system applications requiring precise control over fluid handling and direction.
