HYDRAFORCE
5049155V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

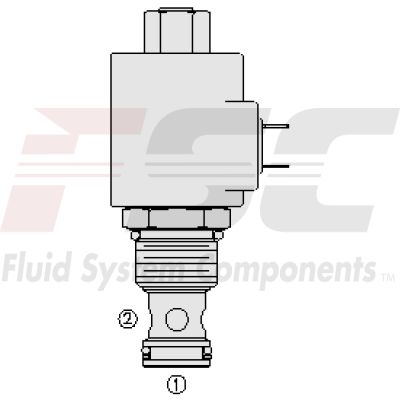

The Hydraforce 5049155V (5049155V) is a solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to act as a load holding or blocking valve in systems that demand minimal internal leakage. In its operational dynamics, the SVX model allows bidirectional flow when de-energized. Upon energization, the valve's poppet closes to block the flow from port 1 to port 2. Conversely, it permits free reverse flow from port 2 to port 1 once the solenoid force requiring 15 to 20 psi (100 to 140 bar) is overcome. Key features of this model include a continuous-duty rated coil and a hardened seat which enhances both its lifespan and its ability to maintain low leakage levels. The valve offers optional coil voltages and terminations that cater to varying requirements and ensure flexibility in application. Its efficient wet-armature construction alongside interchangeable voltage cartridges emphasizes versatility and ease of use. The unitized, molded coil design contributes to the robustness of the valve. Additionally, it includes a manual override option which can be crucial for maintenance and troubleshooting purposes. For environments requiring enhanced protection against moisture, optional waterproof E-Coils are available, which are rated up to IP69K, ensuring reliability in harsh conditions. Lastly, the Hydraforce 5049155V utilizes a cost-effective cavity design that simplifies installation and maintenance processes while maintaining effective performance standards in hydraulic systems.
