HYDRAFORCE
5049157

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

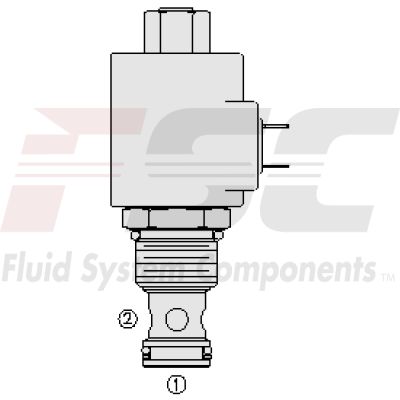

The Hydraforce 5049157 (5049157) is a solenoid-operated, 3-way, normally open, poppet-type, screw-in hydraulic cartridge valve. It is specifically designed to serve as a load-holding or blocking valve in systems that require minimal internal leakage. The operational mechanics of this model allow for bidirectional flow when the valve is de-energized. Upon energization, the poppet closes to block flow from port 1 to port 2 effectively. Additionally, it facilitates free reverse flow from port 2 to port 1 once the solenoid force is overcome, which requires between 15 to 30 psi (103 to 207 bar). This valve features a continuous-duty rated coil and a hardened seat that ensures long life and maintains low leakage levels. Its efficient wet-armature construction enhances its performance while the unitized, molded coil design contributes to its robustness. The cartridges are voltage interchangeable which provides flexibility for system integration. Moreover, the Hydraforce 5049157 offers optional coil voltages and terminations to cater to diverse operational requirements. An added advantage of this model is its manual override option which can be crucial during maintenance or emergency situations. For environments requiring enhanced protection against moisture and dust, there are optional waterproof E-Coils available that are rated up to IP69K. This makes the Hydraforce 5049157 a versatile choice for various hydraulic applications needing reliable and efficient directional control with an emphasis on minimizing leakage.
