- Model:SV12-23K-12T-N-12ER SOLENOID VALVE
- Summary:SOLENOID VALVE POPPET, 2 WAY, NORMALLY OPEN
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

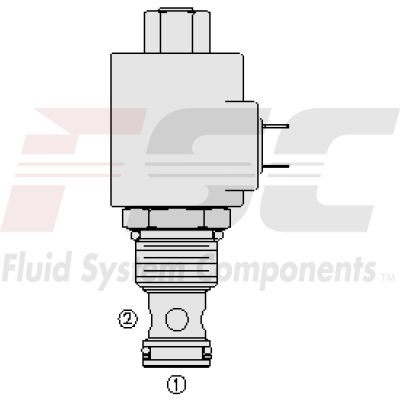

The Hydraforce 5049263 (5049263) is a solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to act as a load-holding or blocking valve in systems that require low internal leakage. Its operational mechanism allows for bidirectional flow when de-energized. Upon energization, the valve's poppet closes to block flow from port 1 to port 2. It also facilitates free reverse flow from port 2 to port 1 after overcoming a solenoid force which requires 15 to 30 psi (1 to 2 bar). The model features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. It also boasts efficient wet-armature construction and unitized, molded coil design which enhances its durability and performance under varying conditions. Additionally, the cartridges are voltage interchangeable with optional coil voltages and terminations available. The manual override option provides added operational flexibility while optional waterproof E-Coils are rated up to IP69K for enhanced protection against environmental elements. This makes the Hydraforce 5049263 an efficient and reliable choice for hydraulic system applications demanding precise control with robust performance.
The Hydraforce 5049263 (5049263) is a solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to act as a load-holding or blocking valve in systems that require low internal leakage. Its operational mechanism allows for bidirectional flow when de-energized. Upon energization, the valve's poppet closes to block flow from port 1 to port 2. It also facilitates free reverse flow from port 2 to port 1 after overcoming a solenoid force which requires 15 to 30 psi (1 to 2 bar). The model features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. It also boasts efficient wet-armature construction and unitized, molded coil design which enhances its durability and performance under varying conditions. Additionally, the cartridges are voltage interchangeable with optional coil voltages and terminations available. The manual override option provides added operational flexibility while optional waterproof E-Coils are rated up to IP69K for enhanced protection against environmental elements. This makes the Hydraforce 5049263 an efficient and reliable choice for hydraulic system applications demanding precise control with robust performance.
Unit weight:
0.25 kg (0.55 lb)
Std. valve
Internal wetted surface area:
188 cm² (29.1 in²)
| Ratings | Pressure Ratings Pressure rating: 240 bar (3500 psi) Proof pressure: 344.7 bar (5000 psi) Burst pressure: 779.1 bar (11300 psi) Flow Ratings Flow rating: See performance chart Maximum internal leakage: 7 drops/min Max at 240 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.8 to 50.2 N-m (33 to 37 ft-lb) Maximum allowable torque: 102 N-m (75 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV12-A23AE-H-J-L-M A Position Sensor Option A 23 Standard A P23A Position Indicator Switch with Resticted Flow E Manual Override E BLANK NONE E K Momentary Push Override, Knob E P Momentary Push Override, Button H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO |
Seal kit:
SK12-2X-T
(x = n, v, P seal option), SK12-2U-O (u seal option)
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
