HYDRAFORCE
5060003

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

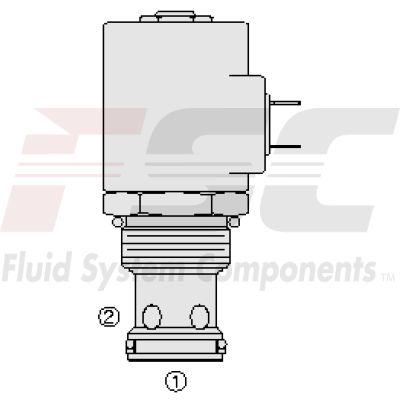

The Hydraforce 5060003 (5060003) is a solenoid-operated, 2-port, normally closed, poppet-type, screw-in hydraulic cartridge valve. This valve is specifically designed to serve as a load-holding or blocking valve in various applications, particularly where low internal leakage is crucial. The operation of the 5060003 is dual-mode; when de-energized, it functions as a check valve by allowing flow from port 1 to port 2 while blocking the flow from port 2 to port 1. Upon energization, the poppet lifts to open the flow path from port 1 to port 2 and simultaneously allows flow from port 2 to port 1. This model features a continuous-duty rated coil and a hardened seat which ensures long life and minimal leakage. It includes options for different coil voltages and terminations to accommodate varying system requirements. Its efficient wet-armature construction enhances its operational reliability. The cartridges of the valve are designed to be voltage interchangeable which adds flexibility in usage across different systems with varying electrical standards. Additional notable characteristics of the Hydraforce 5060003 include a unitized, molded coil design and an optional manual override feature which can be crucial for manual control in case of an electronic control failure. For environments requiring robust durability against water ingress, there are optional waterproof E-Coils available rated up to IP69K. Lastly, its industry-common cavity design ensures compatibility with standard cavities in hydraulic systems, making integration simpler for system designers and maintenance engineers.
