HYDRAFORCE
5061908

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

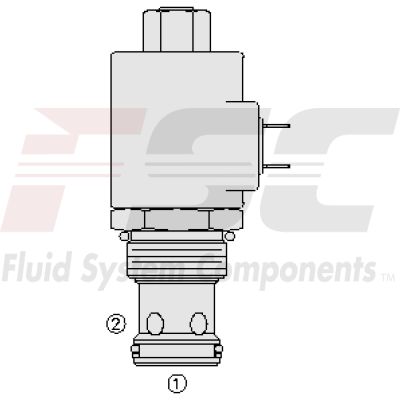

The Hydraforce SV16-21-16T-N-00 (5061908) is a versatile solenoid-operated, 2-way, normally open, poppet-type hydraulic cartridge valve. Designed for load-holding or blocking applications requiring minimal internal leakage, this valve operates efficiently within hydraulic systems. When de-energized, the poppet lifts to allow flow from port 2 to port 1 while restricting flow from port 1 to port 2. Energizing the valve closes the port 2 to port 1 path and allows flow from port 1 to port 2 after overcoming a solenoid force of 50 to 100 psi (3.4 to 6.9 bar). This efficient design features a continuous-duty rated coil and a hardened seat for durability and low leakage. The valve is compatible with various coil voltages and terminations, featuring an efficient wet-armature construction and interchangeable cartridges. It offers manual override options and optional waterproof E-Coils rated up to IP69K. The SV16-21-16T-N-00 can withstand pressure ratings up to 207 bar (3000 psi), with a static pressure rating of up to 250 bar (3650 psi) based on one million cycles, proof pressure of up to 345 bar (5000 psi), and burst pressure reaching up to 965 bar (14000 psi). It maintains a maximum internal leakage of three drops per minute at its full-rated pressure. The operating fluid temperature ranges from -40\u00b0C to +100\u00b0C with Buna N seals or -26\u00b0C to +204\u00b0C with Viton seals, accommodating different environmental conditions. This valve is suitable for use with mineral-based or synthetic hydraulic fluids possessing lubricating properties within a viscosity range of 7.4 to 420 cSt. Its installation requires no orientation restrictions, fitting into VC16-2 cavities with specific torque requirements for both cartridge installation and coil nut adjustments. Accessories such as seal kits and various housing options are available for optimal customization in diverse applications.
