HYDRAFORCE
5111009

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

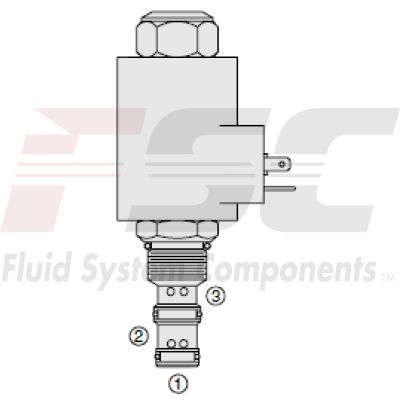

The Hydraforce 5111009 (5111009) is a solenoid-operated, pressure-compensated, spool-type, normally closed, priority type proportional flow control regulator. This versatile valve can also function as a restrictive type, 2-way, pressure-compensated proportional flow regulator when port 2 is blocked. When inlet flow is directed to port 1, the valve regulates priority flow from port 3 regardless of system working pressure, with the flow rate being proportional to the current applied to the solenoid. Excessive flow bypasses through port 2 and can be utilized for auxiliary function control. It is crucial to avoid dead-heading of the priority line by external valving to prevent blocking the bypass line. In restrictive mode applications where bypass port 2 is blocked, the flow rate from port 3 remains proportional to the solenoid current regardless of load pressure at port 3. The valve boasts excellent linearity and hysteresis characteristics and features a hardened spool and cage for durability. It offers optional coil voltages and terminations along with efficient wet-armature construction. The cartridges are voltage-interchangeable, and it includes a unitized, molded coil design with standard coil waterproofing. A manual override option is also available for added convenience in operation.
