HYDRAFORCE
5111010V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

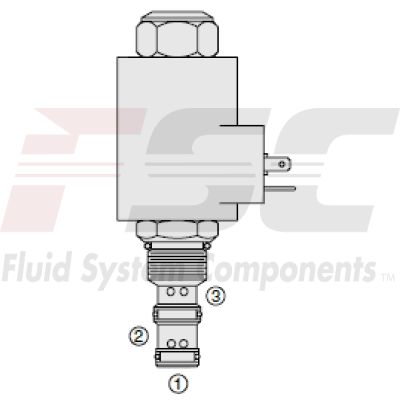

The Hydraforce 5111010V (5111010V) is a solenoid-operated, pressure-compensated, spool-type normally closed priority type proportional flow control regulator. This versatile component can also function as a restrictive type, two-way pressure-compensated proportional flow regulator when port 2 is blocked. Designed to regulate priority flow out of port 3 while managing inlet flow from port 1, this valve maintains consistent performance regardless of system working pressure. The flow rate is directly proportional to the current applied to the solenoid, ensuring precise control. Excessive flow is efficiently bypassed through port 2 and can be utilized for auxiliary functions. It\u2019s crucial to avoid deadheading the priority line with external valving to prevent blocking the bypass line. In restrictive mode applications, blocking bypass port 2 allows for consistent flow rate out of port 3 based on the solenoid current, irrespective of load pressure at port 3. This model boasts excellent linearity and hysteresis characteristics due to its hardened spool and cage construction for enhanced durability. The PV70-30 offers optional coil voltages and terminations along with efficient wet-armature construction and unitized molded coil design. It features standard coil waterproofing and a manual override option for added flexibility in various applications.
