HYDRAFORCE
5111029

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

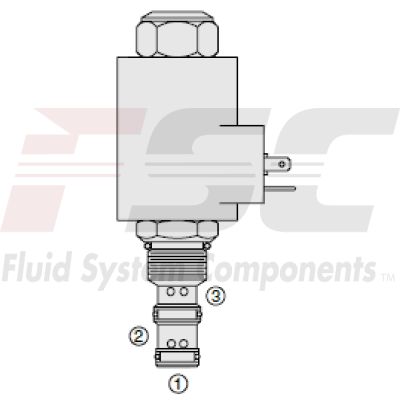

The Hydraforce 5111029 (5111029) is a solenoid-operated, pressure-compensated, spool-type, normally closed, priority-type proportional flow control regulator. It offers versatility by also functioning as a restrictive type, 2-way, pressure-compensated proportional flow regulator when port 2 is blocked. Designed for applications requiring precise flow regulation, the valve ensures priority flow out of port 3 with inlet flow at port 1, irrespective of system working pressure. The flow rate is directly proportional to the current applied to the solenoid. Excessive flow bypasses through port 2 and can be utilized for auxiliary function control. To prevent blocking of the bypass line, it is important to avoid dead-heading of the priority line by external valving. In restrictive mode applications with port 2 blocked, the output at port 3 remains consistent with the solenoid current regardless of load pressure at port 3. This model features excellent linearity and hysteresis characteristics and is built for durability with a hardened spool and cage. It offers optional coil voltages and terminations and benefits from efficient wet-armature construction. The cartridges are voltage-interchangeable, enhancing flexibility in various settings. Its unitized molded coil design includes standard waterproofing for added reliability in challenging environments. Additionally, a manual override option provides further operational control when needed. This makes the Hydraforce 5111029 an adaptable solution for precise hydraulic control applications requiring robust performance and long service life.
