HYDRAFORCE
5111076

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

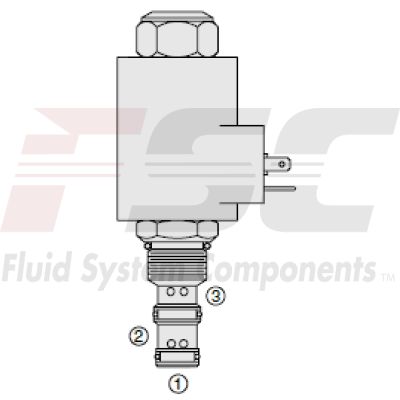

The Hydraforce 5111076 (5111076) is a solenoid-operated, pressure-compensated, spool-type, normally closed, priority-type proportional flow control regulator. It is versatile in its application as it can also function as a restrictive type, 2-way, pressure-compensated proportional flow regulator when port 2 is blocked. This device efficiently regulates priority flow from port 1 to port 3 with the flow rate being directly proportional to the current applied to the solenoid, irrespective of system working pressure. Any excess flow is diverted through port 2, which can be utilized for auxiliary functions. However, care should be taken to avoid dead heading of the priority line via external valving to prevent blockage of the bypass line. In applications where the restrictive mode is employed and bypass port 2 is blocked, the flow rate out of port 3 remains proportional to the solenoid current regardless of load applied at port 3. Notable features include excellent linearity and hysteresis characteristics due to its hardened spool and cage construction for enhanced durability. The unit also offers optional coil voltages and terminations along with efficient wet-armature construction. Its cartridges are voltage-interchangeable and it comes with a unitized molded coil design that ensures coil waterproofing as standard. A manual override option further enhances its utility in various operational scenarios.
