HYDRAFORCE
5111200
$329.09 USD
- HYDRAFORCE
- Material:5111200
- Model:PV42-M30A-0-N-00 FLOW CONTROL
- Summary:PROPORTIONAL PILOT OPERATED SPRING CENTERED SPOOL DIRECTIONAL VALVE U.S. PATENT NO. 6,554,014
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

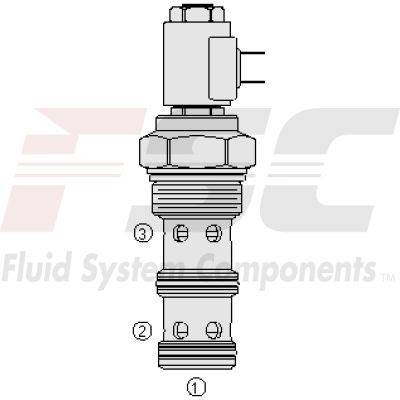

The Hydraforce 5111200 (5111200) is a solenoid-operated, spool-type, normally closed proportional priority flow regulator featuring pressure-compensated regulated and bypass flow. Designed for precise flow control, this valve regulates flow in proportion to the electric current applied to its solenoid, making it suitable for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties. It offers users a choice of two regulated flow ranges and is known for its excellent linearity and hysteresis characteristics, ensuring consistent performance. The valve's construction includes a hardened spool and cage, contributing to its durability and long service life. Optional coil voltages and terminations are available to accommodate various application requirements, along with an efficient wet-armature construction that enhances operational efficiency. Additionally, a manual override option provides flexibility in operation. This product is ideal for applications requiring reliable and precise hydraulic flow control.
The Hydraforce 5111200 (5111200) is a solenoid-operated, spool-type, normally closed proportional priority flow regulator featuring pressure-compensated regulated and bypass flow. Designed for precise flow control, this valve regulates flow in proportion to the electric current applied to its solenoid, making it suitable for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties. It offers users a choice of two regulated flow ranges and is known for its excellent linearity and hysteresis characteristics, ensuring consistent performance. The valve's construction includes a hardened spool and cage, contributing to its durability and long service life. Optional coil voltages and terminations are available to accommodate various application requirements, along with an efficient wet-armature construction that enhances operational efficiency. Additionally, a manual override option provides flexibility in operation. This product is ideal for applications requiring reliable and precise hydraulic flow control.
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Inlet flow rating: 170 to 225 lpm (45.0 to 60.0 gpm) Flow range A 112 to 225 lpm (30.0 to 60.0 gpm) Flow range b Flow rating: 190 lpm (50.0 gpm) Maximum, flow range A 132 lpm (35 gpm) Maximum, flow range b Maximum internal leakage: 190 lpm (0.40 gpm) At zero current |
| Performance |  |
| Installation Specifications | Cavity:
VC42-M3 42-size-3-way Cavities |
| Order Code | POSITION CODE DESCRIPTION PV42-M30DE-H-J-L D Max Regulated Flow D A 189.3 lpm (50.0 gpm) Max Regulated Flow D B 132.5 lpm (35.0 gpm) Max Regulated Flow E Manual Override E BLANK NONE E G Variable Position Override, Red Knurled Knob with Cover Cap E M Variable Position Override, Red Knurled Knob H Line Body H 0 No Body H 20T Aluminum SAE 20 H 20TD Ductile Iron SAE 20 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12DG 12 VDC, D-Coil, DIN 43650 L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DS 24 VDC, D-Coil, Dual Spade L 24ER 24 VDC, E-Coil, Deutsch |
Seal kit:
Seal kit installation instructions
Housings:
Available
42-3w valve bodies
Coils:
EHPR size D
coils
EHPR size E
coils
