- Material:5121912
- Model:TS08-20A-8T-N-24DG PRESSURE CONTROL
- Summary:PRESSURE RELIEVING PROPORTIONAL VALVE
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

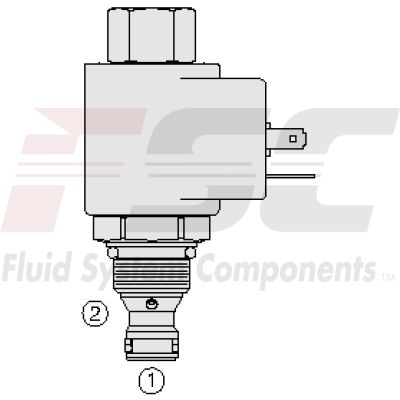

The Hydraforce 5121912 (5121912) is a direct-acting, single-stage, poppet-type, proportional pressure relieving valve. This model, identified by its part number 5121912, is designed to regulate pressure proportionally to the input electrical current. It operates by blocking flow from port 1 to port 2 until the pressure at port 1 surpasses the electrically induced solenoid force. When no current is applied, the valve allows free flow between these ports. The TS08-20X features standard 12 and 24-volt coils and offers optional waterproof E-Coils that are rated up to IP69K for enhanced durability in harsh environments. Additionally, it fits an industry-common cavity and includes standard waterproof coils for reliable performance in various applications.
The Hydraforce 5121912 (5121912) is a direct-acting, single-stage, poppet-type, proportional pressure relieving valve. This model, identified by its part number 5121912, is designed to regulate pressure proportionally to the input electrical current. It operates by blocking flow from port 1 to port 2 until the pressure at port 1 surpasses the electrically induced solenoid force. When no current is applied, the valve allows free flow between these ports. The TS08-20X features standard 12 and 24-volt coils and offers optional waterproof E-Coils that are rated up to IP69K for enhanced durability in harsh environments. Additionally, it fits an industry-common cavity and includes standard waterproof coils for reliable performance in various applications.
Unit weight:
0.15 kg (0.33 lb)
Internal wetted surface area:
105 cm² (16.3 in²)
| Ratings | Pressure Ratings Pressure rating: 172 bar (2500 psi) Proof pressure: 207 bar (3000 psi) Burst pressure: 751.5 bar (10900 psi) Adjustable pressure range: 0 to 34.5 bar (0 to 500 psi) (from zero to maximum control current) range A 0 to 20.7 bar (0 to 300 psi) (from zero to maximum control current) range b Flow Ratings Flow rating: 11.4 lpm (3 gpm) Port 1 to 2 (coil de-energized) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION TS08-20D-H-J-L D Regulating Pressure Range D A 0 to 34.5 bar (500 psi) Pressure Range D B 0 to 20.7 bar (300 psi) Pressure Range H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK08-2X-B
X=seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
08 size D
coils
08 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
