HYDRAFORCE
5121991P
$111.76 USD
- HYDRAFORCE
- Material:5121991P
- Model:TS08-27A-0-P-00 PRESSURE CONTROL
- Summary:PRESSURE RELIEVING PROPORTIONAL CARTRIDGE VALVE U.S. PATENT # 6,627,350 and 7,137,406
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

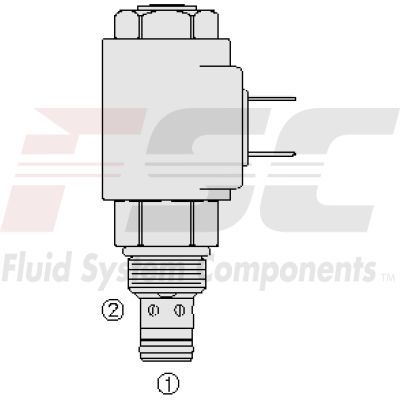

The Hydraforce 5121991P (5121991P) is a pilot-operated spool type, proportional pressure relieving valve, designed to provide precise control in hydraulic systems. This valve, known as the TS08-27F, regulates pressure inversely proportional to the input electrical current. It effectively blocks flow from port 1 to port 2 until the pressure at port 1 surpasses the preset spring force threshold. By applying an electrical current to the coil, users can decrease this spring force, thus reducing the valve setting for adaptable pressure management. The TS08-27F features several adjustable pressure settings and offers a factory preset fixed pressure model option. Constructed with hardened parts, it ensures long-lasting performance and reliability in demanding environments. The valve is compatible with both 12 and 24 volt coils as standard options and fits industry common cavities for easy integration into existing systems. Additionally, it offers optional waterproof E-coils that are rated up to IP69K for enhanced durability against harsh conditions. This makes the Hydraforce 5121991P an excellent choice for applications requiring robust and adjustable hydraulic pressure control solutions.
The Hydraforce 5121991P (5121991P) is a pilot-operated spool type, proportional pressure relieving valve, designed to provide precise control in hydraulic systems. This valve, known as the TS08-27F, regulates pressure inversely proportional to the input electrical current. It effectively blocks flow from port 1 to port 2 until the pressure at port 1 surpasses the preset spring force threshold. By applying an electrical current to the coil, users can decrease this spring force, thus reducing the valve setting for adaptable pressure management. The TS08-27F features several adjustable pressure settings and offers a factory preset fixed pressure model option. Constructed with hardened parts, it ensures long-lasting performance and reliability in demanding environments. The valve is compatible with both 12 and 24 volt coils as standard options and fits industry common cavities for easy integration into existing systems. Additionally, it offers optional waterproof E-coils that are rated up to IP69K for enhanced durability against harsh conditions. This makes the Hydraforce 5121991P an excellent choice for applications requiring robust and adjustable hydraulic pressure control solutions.
Unit weight:
0.15 kg (0.33 lb)
Internal wetted surface area:
124 cm² (19.2 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Port 1 Proof pressure: 413.7 bar (6000 psi) Port 1 206.8 bar (3000 psi) Port 2 Burst pressure: 814 bar (11800 psi) At all ports Pressure setting: 41.4 to 248.2 bar (600 to 3600 psi) Flow Ratings Flow rating: 26.5 lpm (7 gpm) Hysteresis per cent: 3.2 % (A) 3.0 % (B) 4.8 % (C) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Electrical Parameters | Dither PWM frequency:
200 Hz Valve inductance: 134 mH D-series coil 12 V 500 mH D-series coil 24 V 139 mH E-series coil 12 V 560 mH E-series coil 24 V Maximum control current: 1.15 A D-series coil 12 V 0.57 A D-series coil 24 V 1.20 A E-series coil 12 V 0.60 A E-series coil 24 V |
| Performance |   |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Per 7708xxx Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION TS08-27D-H-J-L D Regulating Pressure Range D A 206.8 to 6.9 bar (3000 to 100 psi) Pressure Range D B 137.9 to 6.9 bar (2000 to 100 psi) Pressure Range D C 68.9 to 6.9 bar (1000 to 100 psi) Pressure Range D F 248.2 to 41.1 bar (3600 to 600 psi) Crack Pressure at Zero Current H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12DG 12 VDC, D-Coil, DIN 43650 L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DS 24 VDC, D-Coil, Dual Spade L 24ER 24 VDC, E-Coil, Deutsch |
Seal kit:
SK08-2X-B
X=seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
EHPR size D
coils
EHPR size E
coils
