HYDRAFORCE
5122021
$146.01 USD
- HYDRAFORCE
- Material:5122021
- Model:TS08-27A-0-N-12DG PRESSURE CONTROL
- Summary:PRESSURE RELIEVING PROPORTIONAL CARTRIDGE VALVE U.S. PATENT # 6,627,350 and 7,137,406
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

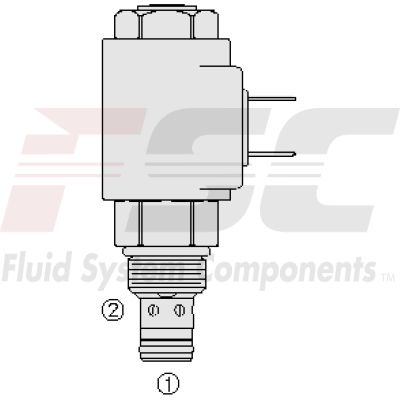

The Hydraforce 5122021 (5122021) is a pilot-operated spool type, proportional pressure relieving valve known for its precision and reliability. This model, also referred to as TS08-27F, is designed to regulate pressure inversely proportional to the input electrical current. It effectively blocks flow from port 1 to port 2 until the pressure at port 1 surpasses the preset spring force threshold, thereby opening the valve. By applying current to the coil, users can decrease the induced spring force and reduce the valve setting accordingly. The TS08-27F offers several adjustable pressure settings along with factory preset fixed pressure models, providing versatility in various applications. Constructed with hardened parts, this valve ensures long-lasting performance and durability. It accommodates both 12 and 24-volt coils as standard options and fits into industry-common cavities for ease of integration. An optional waterproof E-coil rated up to IP69K is available for enhanced protection against environmental factors.
The Hydraforce 5122021 (5122021) is a pilot-operated spool type, proportional pressure relieving valve known for its precision and reliability. This model, also referred to as TS08-27F, is designed to regulate pressure inversely proportional to the input electrical current. It effectively blocks flow from port 1 to port 2 until the pressure at port 1 surpasses the preset spring force threshold, thereby opening the valve. By applying current to the coil, users can decrease the induced spring force and reduce the valve setting accordingly. The TS08-27F offers several adjustable pressure settings along with factory preset fixed pressure models, providing versatility in various applications. Constructed with hardened parts, this valve ensures long-lasting performance and durability. It accommodates both 12 and 24-volt coils as standard options and fits into industry-common cavities for ease of integration. An optional waterproof E-coil rated up to IP69K is available for enhanced protection against environmental factors.
Unit weight:
0.15 kg (0.33 lb)
Internal wetted surface area:
124 cm² (19.2 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Port 1 Proof pressure: 413.7 bar (6000 psi) Port 1 206.8 bar (3000 psi) Port 2 Burst pressure: 814 bar (11800 psi) At all ports Pressure setting: 41.4 to 248.2 bar (600 to 3600 psi) Flow Ratings Flow rating: 26.5 lpm (7 gpm) Hysteresis per cent: 3.2 % (A) 3.0 % (B) 4.8 % (C) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Electrical Parameters | Dither PWM frequency:
200 Hz Valve inductance: 134 mH D-series coil 12 V 500 mH D-series coil 24 V 139 mH E-series coil 12 V 560 mH E-series coil 24 V Maximum control current: 1.15 A D-series coil 12 V 0.57 A D-series coil 24 V 1.20 A E-series coil 12 V 0.60 A E-series coil 24 V |
| Performance |   |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Per 7708xxx Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION TS08-27D-H-J-L D Regulating Pressure Range D A 206.8 to 6.9 bar (3000 to 100 psi) Pressure Range D B 137.9 to 6.9 bar (2000 to 100 psi) Pressure Range D C 68.9 to 6.9 bar (1000 to 100 psi) Pressure Range D F 248.2 to 41.1 bar (3600 to 600 psi) Crack Pressure at Zero Current H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 12DG 12 VDC, D-Coil, DIN 43650 L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DS 24 VDC, D-Coil, Dual Spade L 24ER 24 VDC, E-Coil, Deutsch |
Seal kit:
SK08-2X-B
X=seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
EHPR size D
coils
EHPR size E
coils
