HYDRAFORCE
5122436
$313.38 USD
- HYDRAFORCE
- Material:5122436
- Model:TS12-36A-12T-N-12DL/W PRESSURE
- Summary:PRESSURE REDUCING/ RELIEVING PROPORTIONAL VALVE U.S. PATENT # 7,137,406
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

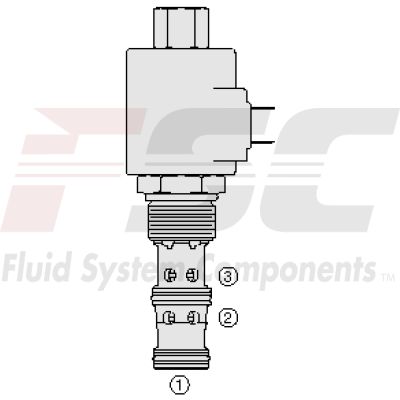

The Hydraforce 5122436 (5122436) is a pilot-operated spool type, proportional pressure reducing/relieving valve designed for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties. This versatile valve allows for precise control of regulated pressure, which is directly proportional to the input electrical current. It operates within a maximum pressure of 4000 psi (275.8 bar) at ports 1 and 2, and a maximum tank pressure of 1000 psi (68.9 bar) at port 3, with the tank pressure being additive to the regulated pressure. The valve accommodates both 12 and 24-volt coils as standard options, with waterproof coils available as standard or optional E-Coils for enhanced protection in demanding environments. This product is ideal for applications requiring accurate pressure control and reliable performance in hydraulic systems.
The Hydraforce 5122436 (5122436) is a pilot-operated spool type, proportional pressure reducing/relieving valve designed for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties. This versatile valve allows for precise control of regulated pressure, which is directly proportional to the input electrical current. It operates within a maximum pressure of 4000 psi (275.8 bar) at ports 1 and 2, and a maximum tank pressure of 1000 psi (68.9 bar) at port 3, with the tank pressure being additive to the regulated pressure. The valve accommodates both 12 and 24-volt coils as standard options, with waterproof coils available as standard or optional E-Coils for enhanced protection in demanding environments. This product is ideal for applications requiring accurate pressure control and reliable performance in hydraulic systems.
| Ratings | Pressure Ratings Reduced pressure range: 6.9 to 207 bar (100 to 3000 psi) A 6.9 to 172 bar (100 to 2500 psi) B 6.9 to 138 bar (100 to 2000 psi) C Flow Ratings Maximum pilot flow: 0.42 lpm (0.11 gpm) With maximum control current and with inlet pressure of 241 bar (3500 psi) At regulated flow 3.8 lpm (1 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °C) With buna N seals -26 to 204 °C (-15 to 400 °C) With viton seals -54 to 107 °C (-65 to 225 °C) Less than 5% performance degradation over 1 million cycles (based on simulated test at with polyurethane seals 37.8 lpm (10 gpm) flow and maximum pressure setting |
| Operating Parameters | Recommended system filtration:
10 µm Or better |
| Electrical Parameters | Maximum control current:
1.04 A D-series coil 12 Vdc 0.96 A D-series coil 12 Vdc 0.53 A D-series coil 24 Vdc 0.50 A D-series coil 24 Vdc 1.29 A E-series coil 12 Vdc 1.22 A E-series coil 12 Vdc 0.70 A E-series coil 24 Vdc 0.66 A E-series coil 24 Vdc Valve inductance: 167 mH D-series coil 12 Vdc 624 mH D-series coil 24 Vdc 159 mH E-series coil 12 Vdc 550 mH E-series coil 24 Vdc |
| Performance |    |
| Installation Specifications | Cavity: 12-size-3-way Cavities |
| Order Code | POSITION CODE DESCRIPTION TS12-36DE-H-J-L D Regulating Pressure Range D A 6.9 to 206.8 bar (100 to 3000 psi) Pressure Range D B 6.9 to 172.4 bar (100 to 2500 psi) Pressure Range D C 6.9 to 138.0 bar (100 to 2000 psi) Pressure Range E Manual Override E BLANK NONE E M Minimum Regulated Pressure Override, 3/16" Internal Hex H Line Body H 0 No Body H 8T Aluminum SAE 8 H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 H 6B Aluminum BSPP 3/4" (6) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
Seal kit installation instructions
Housings:
Available
12-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
