HYDRAFORCE
5122714P
$234.85 USD
- HYDRAFORCE
- Material:5122714P

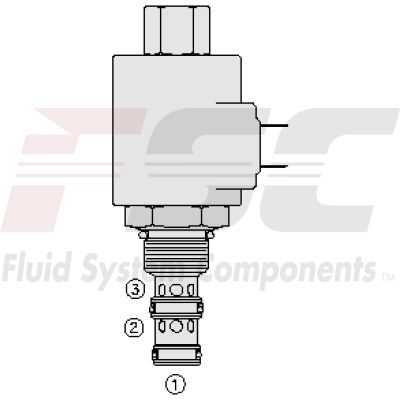

- Model:TS10-36C-8T-P-24ER PRESSURE CONTROL
- Summary:Heavy-duty pressure sensor
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5122714P (5122714P) is a high-accuracy, heavy-duty pressure sensor designed for demanding industrial and off-highway equipment applications. This sensor achieves a 1% total error band accuracy by integrating advanced ASIC technology with a stable, field-proven polysilicon thin-film pressure sensor. It offers reliable performance within a temperature range of -20 to 85\u00b0C (-4 to 185\u00b0F), making it suitable for environments with broad temperature variations. The sensor features reverse polarity and miswire protection, ensuring durability and longevity in various operational conditions. Its all-welded pressure construction enhances its robustness, while the high EMI/RFI rating provides excellent resistance to electromagnetic interference. Rated IP67 for ingress protection, the Hydraforce 5122714P is well-suited for harsh environments where dust and water exposure are concerns. Additionally, it includes diagnostic rails with a 4.5 V output, facilitating easy monitoring and diagnostics in complex systems.
The Hydraforce 5122714P (5122714P) is a high-accuracy, heavy-duty pressure sensor designed for demanding industrial and off-highway equipment applications. This sensor achieves a 1% total error band accuracy by integrating advanced ASIC technology with a stable, field-proven polysilicon thin-film pressure sensor. It offers reliable performance within a temperature range of -20 to 85\u00b0C (-4 to 185\u00b0F), making it suitable for environments with broad temperature variations. The sensor features reverse polarity and miswire protection, ensuring durability and longevity in various operational conditions. Its all-welded pressure construction enhances its robustness, while the high EMI/RFI rating provides excellent resistance to electromagnetic interference. Rated IP67 for ingress protection, the Hydraforce 5122714P is well-suited for harsh environments where dust and water exposure are concerns. Additionally, it includes diagnostic rails with a 4.5 V output, facilitating easy monitoring and diagnostics in complex systems.
Unit weight:
0.21 kg (0.47 lb)
Internal wetted surface area:
192 cm² (29.8 in²)
TS10-36X
198 cm² (30.7 in²)
TS10-36XM
| Ratings | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Ports 1, 2 68.9 bar (1000 psi) Port 3 Proof pressure: 249.9 bar (3625 psi) Burst pressure: 758.4 bar (11000 psi) With coil assembled Adjustable pressure range: 6.9 to 206.8 bar (100 to 3000 psi) Model-code A 6.9 to 158.6 bar (100 to 2300 psi) Model code B 6.9 to 117.2 bar (100 to 1700 psi) Model code C Flow Ratings Flow rating: 56.8 lpm (15 gpm) Maximum pilot flow: 0.02 lpm (0.08 gpm) With maximum control current and with inlet pressure of 241.3 bar (3500 psi) at regulated flow of 3.8 lpm (1 gpm) Other Ratings Cycle life: Less than 5% performance degradation over 1 million cycles (based on simulated test at 37.8 lpm (10 gpm) flow and maximum pressure setting. Corrosion protection: 960 hr salt spray per ASTM b117 Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 (tank pressure is additive to regulated pressure) |
| Electrical Parameters | Maximum control current:
1.10 A 12 V D coil 0.55 A 24 V D coil 141 mH 12 V E coil 626 mH 24 V E coil Valve inductance: 141 mH 12 V D coil 626 mH 24 V D coil 139 mH 12 V E coil 600 mH 24 V E coil Recommended PWM frequency: 200 Hz |
| Performance |    |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 9.5 to 13.6 N-m (7 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION TS10-36DE-H-J-L D Regulating Pressure Range D A 6.9 to 206.8 bar (100 to 3000 psi) Pressure Range D B 6.9 to 158.6 bar (100 to 2300 psi) Pressure Range D C 6.9 to 117.2 bar (100 to 1700 psi) Pressure Range E Manual Override E BLANK NONE E M Minimum Regulated Pressure Override, 3/16" Internal Hex H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-3X-BM SK10-3U-OO
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
