HYDRAFORCE
5123096

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

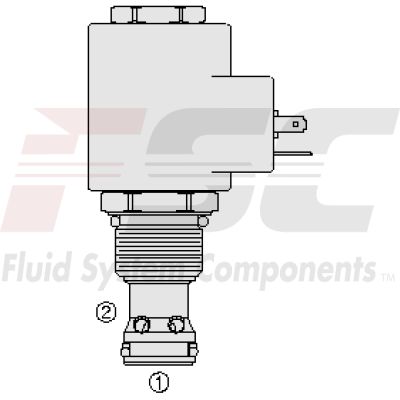

The Hydraforce 5123096 (5123096) is a pilot-operated, spool-type, proportional pressure relieving valve designed for demanding applications that require precise pressure control. This model, known as the TS12-27X, allows for infinite adjustment across a specified range through a variable electric input. The regulated pressure is inversely proportional to the electrical current applied, meaning that as the input current increases, the pressure required to open the valve decreases. This makes it an effective pressure limiting device in various applications. The TS12-27X operates by blocking flow from port 1 to port 2 until enough pressure at port 1 overcomes the spring force in the pilot section. In its default state with no current applied, it relieves at maximum set pressure. Features of this valve include several adjustable pressure ranges and factory preset fixed pressure models for versatility and ease of use. It is constructed with hardened parts for durability and long life. Standard coil options are available in 12 and 24 volts, and it fits into an industry-common cavity. Additionally, optional waterproof E-Coils are available with ratings up to IP69K, ensuring robust performance even in harsh environmental conditions.
