- Material:5123108V

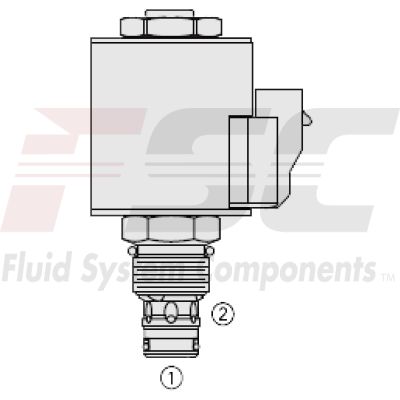

- Model:TS10-27B-0-V-12DR PRESSURE CONTROL
- Summary:PRESSURE RELIEVING PROPORTIONAL CARTRIDGE VALVE U.S. PATENT # 6,267,350 and 7,137,406
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5123108V (5123108V) is a pilot-operated spool type, proportional pressure relieving valve designed for use in hydraulic systems utilizing mineral-based or synthetic fluids with lubricating properties. This valve is engineered to regulate pressure inversely proportional to the input electrical current, offering precise control within specified pressure ranges. It features standard 12 and 24-volt coils, making it versatile for various applications that require different voltage inputs. The valve is built with an industry-common cavity, ensuring compatibility and ease of integration into existing systems. Additionally, it boasts a corrosion-resistant coating that withstands up to 960 hours of salt spray, enhancing its durability in harsh environments. Users can choose between adjustable or fixed relief pressure settings to suit specific application needs. For applications requiring higher pressure capabilities, a factory-set model F version is available with a maximum pressure rating of 330.9 bar (4800 psi). This product is ideal for applications demanding reliable and adjustable pressure relief in hydraulic systems.
The Hydraforce 5123108V (5123108V) is a pilot-operated spool type, proportional pressure relieving valve designed for use in hydraulic systems utilizing mineral-based or synthetic fluids with lubricating properties. This valve is engineered to regulate pressure inversely proportional to the input electrical current, offering precise control within specified pressure ranges. It features standard 12 and 24-volt coils, making it versatile for various applications that require different voltage inputs. The valve is built with an industry-common cavity, ensuring compatibility and ease of integration into existing systems. Additionally, it boasts a corrosion-resistant coating that withstands up to 960 hours of salt spray, enhancing its durability in harsh environments. Users can choose between adjustable or fixed relief pressure settings to suit specific application needs. For applications requiring higher pressure capabilities, a factory-set model F version is available with a maximum pressure rating of 330.9 bar (4800 psi). This product is ideal for applications demanding reliable and adjustable pressure relief in hydraulic systems.
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) 103.4 bar (1500 psi) Maximum tank port pressure dynamic condition Regulated pressure range: 6.9 to 206.8 bar (100 to 3000 psi) (a) from zero to maximum control current 6.9 to 138 bar (100 to 2000 psi) (b) from zero to maximum control current 6.9 to 69 bar (100 to 1000 psi) (c) from zero to maximum control current Relief pressure range: 6.9 to 206.8 bar (100 to 3000 psi) A (from zero to imax) 6.9 to 138 bar (100 to 2000 psi) B (from zero to imax) 6.9 to 69 bar (100 to 1000 psi) C (from zero to imax) Pressure rise: 0.48 bar/lpm (26.5 psi/gpm) A 0.36 bar/lpm (20 psi/gpm) B 0.46 bar/lpm (25 psi/gpm) C Flow Ratings Flow rating: 75.7 lpm (20 gpm) △p (cartridge only) port 1 to port 2 (coil energized) 20.7 to 24.1 bar (300 to 350 psi) Maximum pilot flow: 0.76 lpm (0.2 gpm) Hysteresis per cent: 3.2 % (a) 3.0 % (a) 4.8 % (c) Temperature Ratings Operating fluid temperature: -40 to 120 °C (-40 to 250 °F) With buna N seals -35 to 204 °C (-31 to 400 °F) With viton seals |
| Electrical Parameters | Maximum control current:
1.10 A D-series coil 12 Vdc 0.55 A D-series coil 24 Vdc Dither PWM frequency: 200 Hz |
| Performance |   |
| Installation Specifications | Cavity: 10-size-2-way Cavities |
| Order Code | POSITION CODE DESCRIPTION TS10-27D-H-J-L D Regulating Pressure Range D A 206.8 to 6.9 bar (3000 to 100 psi) Pressure Range D B 137.9 to 6.9 bar (2000 to 100 psi) Pressure Range D C 68.9 to 6.9 bar (1000 to 100 psi) Pressure Range D E Adjustable Crack Pressure at Zero Current D F 275.8 to 27.6 bar (4000 to 400 psi) Crack Pressure at Zero Current H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
