HYDRAFORCE
5129982

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

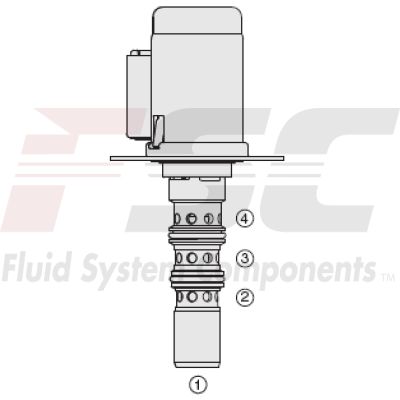

The Hydraforce 5129982 (5129982) is a sophisticated pilot-operated, spool-type proportional pressure reducing-relieving valve, designed specifically for hydraulic applications requiring precise pressure control. This drop-in, flange-mounted cartridge valve is compatible with mineral-based or synthetic hydraulic fluids that possess lubricating properties. It features an integral, non-serviceable coil that plays a crucial role in regulating pressure proportional to the input electric current, within a specified range. Operationally, the 5129982 allows flow from port 3 to port 4 while blocking port 2 when no current is applied. Upon energization of the coil, it connects port 3 to port 2 and controls the pressure at port 3 proportionally to the coil's current input. Should the pressure at port 3 exceed the coil-induced setting, excess pressure is relieved to port 4. Notably, any back pressure at port 4 directly adds to the set pressure on a one-to-one basis. This valve is versatile with several key features enhancing its functionality and installation ease. It comes standard with both 12 and 24-volt coils and offers an optional lockdown flange for secure mounting. For connection versatility, it provides several push-on termination options and can be fitted with an optional 233-micron mesh screen for additional fluid cleanliness. The integral waterproof coil ensures durability and reliable operation in various environments. These characteristics make the Hydraforce 5129982 an efficient choice for tailored hydraulic control solutions in specialized applications.
