HYDRAFORCE
5140301

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

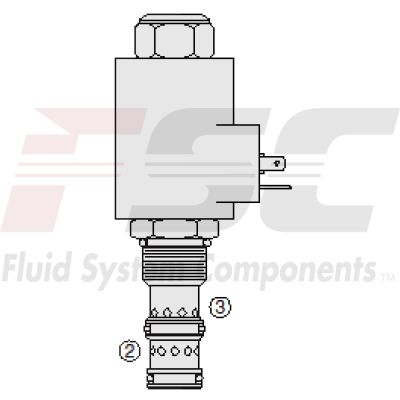

The Hydraforce 5140301 (5140301) is a high-performance solenoid operated, spool type, normally closed proportional flow control valve. Designed specifically for precise fluid control, the PV7233 model enables regulated flow from port 3 to port 2 while keeping input from port 1 blocked. This regulation is directly proportional to the electric current applied to its solenoid, allowing for smooth and responsive operation. The valve is optimized for use with a pressure compensator and can handle a pressure differential of up to 175 psi (12 bar), making it suitable for various fluid power applications. This model boasts several key features enhancing its efficiency and durability, including a choice of two regulated flow ranges which provide flexibility in application. It exhibits excellent linearity and hysteresis characteristics that ensure accuracy and repeatability in flow control. The hardened spool and cage enhance the valve's longevity even under demanding conditions. Additionally, it offers optional control orifice sizes, coil voltages, and terminations to accommodate diverse system requirements. The efficient wet-armature construction of the Hydraforce 5140301 contributes to its robust performance. Cartridges are designed to be voltage-interchangeable which adds a layer of versatility for system integration. The unitized, molded coil design along with standard coil waterproofing ensures reliable operation in wet environments. An optional manual override feature provides added control flexibility, allowing operators to manually adjust the valve during maintenance or in case of an electronic control failure. This combination of advanced features makes the Hydraforce 5140301 an ideal choice for sophisticated hydraulic systems requiring precise flow management.
