HYDRAFORCE
5140308

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

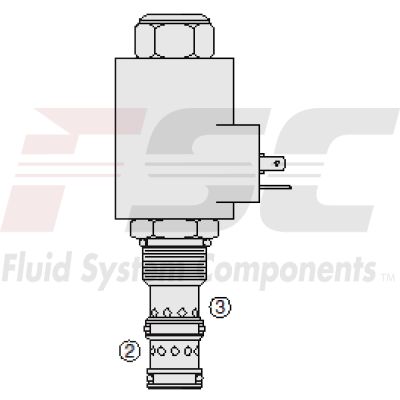

The Hydraforce PV72-33AM-0-N-12DL/W (5140308) is a high-performance, solenoid-operated, spool-type, normally closed proportional flow control valve. This model offers precise control by regulating flow from port 3 to port 2 while keeping input from port 1 blocked. The valve's operation is directly proportional to the electric current applied to its solenoid, providing excellent linearity and hysteresis characteristics which make it highly effective in varied applications requiring precise flow management. This valve is designed for use with a pressure compensator and can handle a pressure differential of up to 175 psi (approximately 12 bar). It boasts robust construction with a hardened spool and cage ensuring long service life even under rigorous conditions. The PV72-33AM-0-N-12DL/W features optional control orifice sizes and coil voltages, allowing customization to meet specific system requirements. Its efficient wet-armature construction along with voltage-interchangeable cartridges enhances its versatility. Additional durability is provided through unitized, molded coil design and standard waterproofing of the coil, making it suitable for tough environmental conditions. A manual override option adds an extra layer of operational security and convenience. With such advanced specifications including a maximum flow rate of up to 15 GPM and various temperature ratings depending on the seal material used (ranging from -15°C up to 400°F with fluorocarbon seals), this valve is equipped to handle a wide array of hydraulic fluid types within a viscosity range of 7.4 to 420 cSt. Overall, the Hydraforce PV72-33AM-0-N-12DL/W offers robust performance for regulated flow applications in hydraulic systems, combining durability with adaptability in design to meet specific operational needs effectively.
