HYDRAFORCE
5142047

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

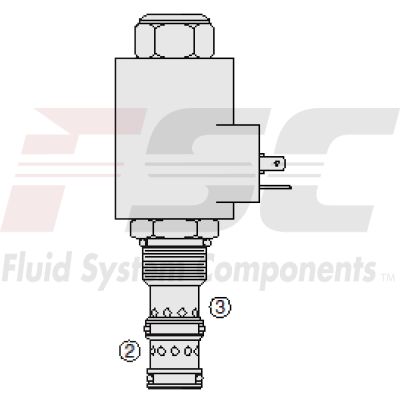

The Hydraforce PV72-30BM-12T-N-12DG (5142047) is a sophisticated solenoid operated, pressure compensated, spool type, normally closed, proportional priority flow control valve. This model ensures regulated flow at port 3 with pressure compensated regulated and bypass flow, which is proportional to the electric current applied to the solenoid. The valve is designed for excellent performance with features like two regulated flow ranges, optimal linearity and hysteresis characteristics. It also offers optional coil voltages and terminations, efficient wet-armature construction, and interchangeable voltage cartridges. The unit boasts a unitized, molded coil design with standard waterproofing and an optional manual override. This valve can handle pressures up to 3500 psi with a proof pressure of 5000 psi and a burst pressure of 13000 psi. Its operating fluid temperature ranges from -40 to 212°F with Buna N seals, making it versatile for different working environments. The model operates optimally within a fluid viscosity range of 7.4 to 420 cSt and can handle maximum operating contamination levels as specified by ISO 4406 standards. The PV72-30BM-12T-N-12DG is ideal for applications requiring reliable flow control in hydraulic systems across various sectors due to its robust construction and high resistance to corrosion (960 hr salt spray per ASTM B117). Its compact design includes an internal wetted surface area of up to 53.0 in² depending on the specific model variant used (PV7230XG), ensuring it fits into various setups without requiring extensive space.
