HYDRAFORCE
5200200
$12.50 USD
- HYDRAFORCE
- Material:5200200
- Model:CV08-20-0-N-10 CHECK VALVE
- Summary:CHECK VALVE
Quantity in stock: 34
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

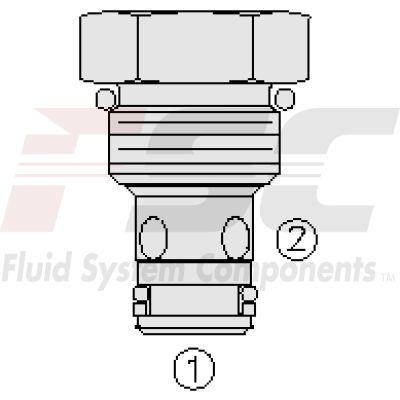

The Hydraforce CV08-20-0-N-10 (5200200) is a screw-in, cartridge-style hydraulic check valve designed primarily for use as a blocking or load-holding device in hydraulic systems. It operates by allowing fluid flow from port 1 to port 2 while typically blocking flow in the opposite direction. This functionality is achieved through a fully guided check assembly that remains spring-biased closed until sufficient pressure at port 1 compels it to open towards port 2. The valve features a hardened seat to ensure long life and minimal leakage and offers optional bias springs to enhance backpressure application flexibility. The CV08-20-0-N-10 is recognized for its compact size and rapid closing and seating capabilities, making it an efficient choice for various hydraulic applications. It can handle a maximum operating pressure of 3500 psi, with proof pressure up to 5075 psi and burst pressure reaching 15000 psi. The valve's performance at different temperatures is also notable, supporting operating fluid temperatures from -40°C to +100°C with standard Buna N seals, and even higher with fluorocarbon or urethane/polyurethane seals. Additional specifications include minimal internal leakage of about 0.10 ml/min at 3500 psi, demonstrating its efficacy in maintaining system integrity under substantial pressures. The CV08-20-0-N-10 supports a wide range of fluid viscosities from 7.4 to 420 cSt, ensuring versatility with different hydraulic fluids whether mineral-based or synthetic with lubricating properties. Installation specifications are straightforward with no orientation restrictions and a specified cartridge installation torque between 19 to 21 ft-lb, ensuring ease of integration into various systems. It also offers various seal kit options like Buna N, Fluorocarbon, Polyurethane, and Urethane for different operational requirements and environmental conditions.
The Hydraforce CV08-20-0-N-10 (5200200) is a screw-in, cartridge-style hydraulic check valve designed primarily for use as a blocking or load-holding device in hydraulic systems. It operates by allowing fluid flow from port 1 to port 2 while typically blocking flow in the opposite direction. This functionality is achieved through a fully guided check assembly that remains spring-biased closed until sufficient pressure at port 1 compels it to open towards port 2. The valve features a hardened seat to ensure long life and minimal leakage and offers optional bias springs to enhance backpressure application flexibility. The CV08-20-0-N-10 is recognized for its compact size and rapid closing and seating capabilities, making it an efficient choice for various hydraulic applications. It can handle a maximum operating pressure of 3500 psi, with proof pressure up to 5075 psi and burst pressure reaching 15000 psi. The valve's performance at different temperatures is also notable, supporting operating fluid temperatures from -40°C to +100°C with standard Buna N seals, and even higher with fluorocarbon or urethane/polyurethane seals. Additional specifications include minimal internal leakage of about 0.10 ml/min at 3500 psi, demonstrating its efficacy in maintaining system integrity under substantial pressures. The CV08-20-0-N-10 supports a wide range of fluid viscosities from 7.4 to 420 cSt, ensuring versatility with different hydraulic fluids whether mineral-based or synthetic with lubricating properties. Installation specifications are straightforward with no orientation restrictions and a specified cartridge installation torque between 19 to 21 ft-lb, ensuring ease of integration into various systems. It also offers various seal kit options like Buna N, Fluorocarbon, Polyurethane, and Urethane for different operational requirements and environmental conditions.
Unit weight:
0.05 kg (0.12 lb)
Internal wetted surface area:
60 cm² (9.3 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Proof pressure: 350 bar (5075 psi) Burst pressure: 1034 bar (15000 psi) Flow Ratings Flow rating: See graph Maximum internal leakage: 0.10 ml/min (2 drops/min) At 241 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With urethane and polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hour salt spray per ASTM b117 GCV08-20 only |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |     |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 54 N-m (40 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION CV08-20-H-J-R H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 4 4 psi Bias Spring R 10 10 psi Bias Spring R 25 25 psi Bias Spring R 40 40 psi Bias Spring R 50 50 psi Bias Spring R 60 60 psi Bias Spring R 80 80 psi Bias Spring R 100 100 psi Bias Spring R 150 150 psi Bias Spring R 200 200 psi Bias Spring R 270 270 psi Bias Spring R M25 25 bar Bias Spring |
Seal kit:
SK08-2N-T
Buna N
SK08-2V-T
Fluorocarbon
SK08-2HV-T
Fluorocarbon
SK08-2P-T
Polyurethane
SK08-2U-O
Urethane
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
