HYDRAFORCE
5201660

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

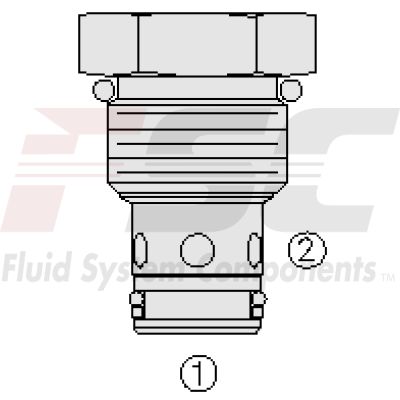

The Hydraforce 5201660 (5201660) is a screw-in, cartridge-style hydraulic check valve designed for use as a blocking or load-holding device in hydraulic systems. The model CV1020X facilitates fluid flow from port 1 to port 2, while it generally prevents flow in the reverse direction. This operational functionality is achieved through a fully guided check mechanism that remains spring-biased in a closed position until sufficient pressure at port 1 compels it to open towards port 2. Key features of the CV1020X include a hardened seat which ensures longevity and minimal leakage, enhancing the reliability and efficiency of the system it is integrated into. The valve also offers optional bias springs, providing flexibility for backpressure applications. Specifically, a 300 psi bias spring option can be selected and comes with a tall cap, allowing customization according to specific system requirements. Moreover, its industry-common cavity design ensures compatibility with standard cavities in various applications, making it adaptable and easy to integrate into existing hydraulic systems. This model's robust construction and versatile design make it suitable for a wide range of hydraulic applications where precise fluid control is necessary.
