HYDRAFORCE
5202581
$101.25 USD
- HYDRAFORCE
- Material:5202581
- Model:CV12-20-12T-N-80 CHECK VALVE
- Summary:CHECK VALVE
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5202581 (5202581) is a high-performance hydraulic check valve designed for versatile use in blocking or load-holding applications. Known as the CV1220, this screw-in, cartridge-style valve operates by allowing flow from port 1 to port 2, while normally preventing flow in the reverse direction. It features a fully guided check mechanism that is spring-biased closed, requiring sufficient pressure at port 1 to open towards port 2. This design ensures reliable operation and effective control of hydraulic fluid within a system. The CV1220 is engineered with a hardened seat which significantly enhances its durability and reduces leakage risks, making it suitable for demanding operational conditions. Additionally, it offers optional bias springs that provide flexibility for backpressure applications, allowing customization based on specific system requirements. The valve's design also includes a cost-effective cavity which contributes to overall system affordability without compromising on quality or performance. Ideal for use in mobile and industrial hydraulics, the Hydraforce CV1220 provides an efficient solution for designers looking to incorporate dependable load-holding capabilities into their hydraulic circuits. Its robust construction and flexible design options make it a preferred choice among professionals seeking reliable hydraulic components.
The Hydraforce 5202581 (5202581) is a high-performance hydraulic check valve designed for versatile use in blocking or load-holding applications. Known as the CV1220, this screw-in, cartridge-style valve operates by allowing flow from port 1 to port 2, while normally preventing flow in the reverse direction. It features a fully guided check mechanism that is spring-biased closed, requiring sufficient pressure at port 1 to open towards port 2. This design ensures reliable operation and effective control of hydraulic fluid within a system. The CV1220 is engineered with a hardened seat which significantly enhances its durability and reduces leakage risks, making it suitable for demanding operational conditions. Additionally, it offers optional bias springs that provide flexibility for backpressure applications, allowing customization based on specific system requirements. The valve's design also includes a cost-effective cavity which contributes to overall system affordability without compromising on quality or performance. Ideal for use in mobile and industrial hydraulics, the Hydraforce CV1220 provides an efficient solution for designers looking to incorporate dependable load-holding capabilities into their hydraulic circuits. Its robust construction and flexible design options make it a preferred choice among professionals seeking reliable hydraulic components.
Unit weight:
0.17 kg (0.38 lb)
Internal wetted surface area:
126 cm² (19.6 in²)
| Ratings | Pressure Ratings Pressure rating: 240 bar (3500 psi) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 5 drops/min At 240 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |

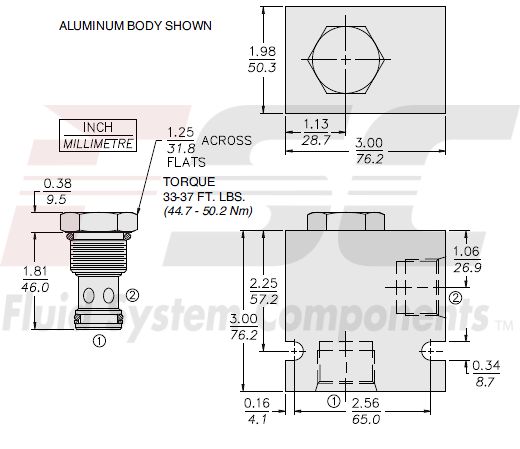

| Installation Specifications | Cavity:
VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.7 to 50.2 N-m (33 to 37 ft-lb) Maximum allowable torque: 101.7 N-m (75 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION CV12-20-H-J-R H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 5 5 psi Bias Spring R 25 25 psi Bias Spring R 30 30 psi Bias Spring R 40 40 psi Bias Spring R 50 50 psi Bias Spring R 60 60 psi Bias Spring R 80 80 psi Bias Spring |
Seal kit:
SK12-2X-T
X = seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
