HYDRAFORCE
5221040

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

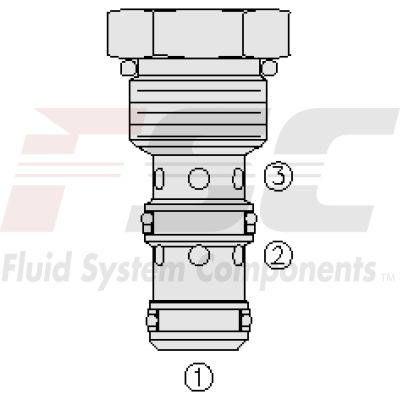

The Hydraforce PC10-30-6T-N (5221040) is a pilot-operated hydraulic check valve, designed for versatile use in hydraulic systems. This screw-in, cartridge-style valve facilitates free flow from ports 2 to 3 and normally blocks flow from ports 3 to 2. It permits flow in the reverse direction when pressure is applied at port 1, with a pilot ratio of 4:1. The valve features a hardened seat ensuring long life and minimal leakage, and it can be customized with optional sealed pistons and various spring ranges. Rated for pressures up to 3500 psi (241 bar), the PC10-30-6T-N can handle operating fluid temperatures ranging from -40°C to +100°C with Buna N seals, extending up to +204°C with fluorocarbon seals. It supports a fluid viscosity range from 7.4 to 420 cSt and operates effectively within an ISO 4406 contamination level of 20/18/14. The internal leakage specifications highlight its efficiency, with maximum leakage between ports being very minimal under normal operating pressures. The unit weighs approximately 0.10 kg and fits into industry-standard VC103 cavities without orientation restrictions during installation. Torque requirements for cartridge installation are specified between 32.6 to 35.4 Nm, ensuring secure placement and operation under varying conditions. This product is ideal for applications requiring reliable check functionality in hydraulic circuits where space and environmental resilience are critical factors. Optional accessories like various seal kits tailored for different environmental conditions enhance its adaptability across multiple system configurations.
