HYDRAFORCE
5230011

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

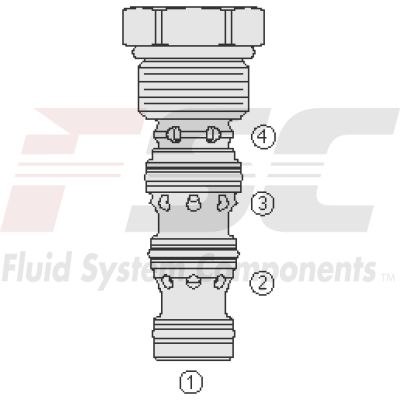

The Hydraforce DC10-40T-0-N-25 (5230011) is a dual pilot operated check valve designed primarily for blocking or load holding circuits utilizing general purpose hydraulic fluids. This model, known as the DC1040X, features a cartridge style that ensures easy installation and maintenance. It is equipped with hardened seats to extend service life and minimize leakage, ensuring reliable operation even under high-pressure conditions. The valve boasts impressive pressure ratings with a standard pressure rating of up to 3500 psi and thermal relief crack pressures ranging from 4500 to 5600 psi. Its pilot ratio stands at 3:1, which facilitates effective operation across various applications. The DC10-40T-0-N-25 offers a flow rate of up to 16 gallons per minute, with maximum internal leakage maintained at minimal levels - specifically, 5 drops per minute at 3000 psi. Temperature adaptability is another strength of this model. It operates efficiently with fluid temperatures ranging from -40°C to +100°C when equipped with Buna N seals, and can handle even broader ranges with alternative seal materials like Fluorocarbon and Polyurethane. Additionally, the valve can withstand ambient temperatures up to 90°C. For corrosion resistance, the DC1040X meets stringent standards with a 960-hour salt spray endurance as per ASTM B117. The valve's cavity specifications are compatible with VC104 cavities for size 10/4-way installations. Furthermore, it supports various seal kits including Buna N (SK104NMMM), Fluorocarbon (SK104VMMM), and Polyurethane (SK104PMMM) options. Overall, the Hydraforce DC10-40T-0-N-25 is an effective solution for hydraulic circuit applications requiring robust performance in blocking or load holding tasks coupled with high reliability and ease of maintenance.
