HYDRAFORCE
5262460V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

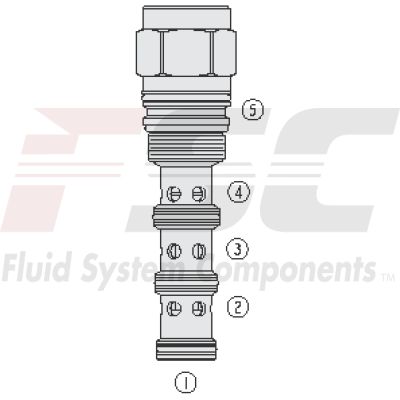

The Hydraforce 5262460V (5262460V) is a high-performance hydraulic directional valve designed for robust and efficient operation in demanding applications. The PD16S50X model is a screw-in, cartridge-style valve that operates as a pilot-operated, spool-type directional control valve. It features a unique configuration where, in its neutral position, it allows flow between ports 3 and 2 while blocking the flow at port 4. Upon receiving a remote pilot signal at port 1, the valve shifts to enable flow between ports 3 and 4, simultaneously blocking flow at port 2. This dynamic shifting is crucial for applications requiring precise control over fluid direction and flow. An additional critical feature of the PD16S50X is its vented spring chamber connected to port 5, which ensures that the spring chamber's pressure does not influence the operation of the valve despite full pressurization at ports 1, 2, 3, and 4. However, it should be noted that pressure at port 5 can affect the required pilot pressure. The durability of this model is enhanced by its hardened spool and cage, ensuring long life even under harsh conditions. To accommodate various application requirements, it offers options for bias springs with different pressures including 50 psi, 70 psi, 100 psi, and 150 psi. This flexibility makes the Hydraforce PD16S50X suitable for a wide range of hydraulic systems where reliable performance under varying pressures is essential.
