HYDRAFORCE
5265840V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

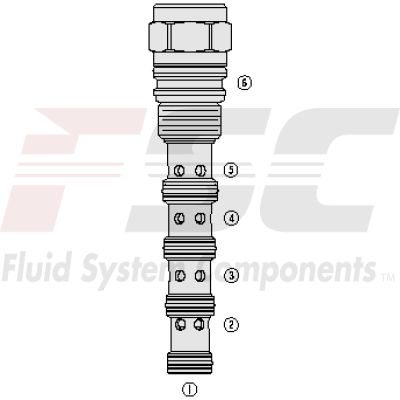

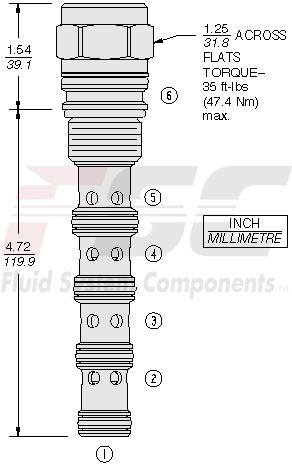

The Hydraforce 5265840V (5265840V) is a high-performance hydraulic directional valve, specifically the PD12S60N model, designed to efficiently manage the flow of hydraulic fluid within a system. This screw-in, cartridge-style valve operates as a pilot-operated, spool-type device. Its operational mechanics are straightforward: in its neutral position, it allows for fluid flow between ports 2 and 3, as well as between ports 4 and 5. Upon receiving a remote pilot signal at port 1, the valve's spool shifts to enable fluid flow between ports 3 and 4 and between ports 2 and 5. Additionally, the spring chamber of the valve is vented to the tank through port 6, enhancing its functionality by allowing full pressurization at ports 1 through 5 without impacting the required pilot pressure. A unique feature of this model is its vented spring chamber which ensures that pressure at port 6 does not affect the required pilot pressure. This design detail contributes to the robustness and reliability of the valve under various operational conditions. The PD12S60N is built for durability and long life with hardened spool and cage components. Capable of handling pressures up to 5000 psi (344 bar), it is equipped with options for either 110 or 170 psi bias springs, catering to different application needs and enhancing its versatility in use across multiple hydraulic systems.
