HYDRAFORCE
5270384

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

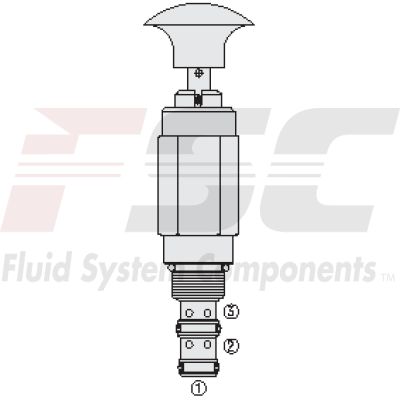

The Hydraforce 5270384 (5270384) is a robust and versatile hydraulic cartridge valve designed for directional control in hydraulic systems. The model MP0834X is a 3-way, manual pull-to-shift, spring return valve, ensuring reliable operation and easy control. In its default neutral position, the valve effectively blocks flow between ports 2 and 3, maintaining system stability. When actuated by pulling, it allows fluid flow between these ports, facilitating control over connected hydraulic circuits. The spring chamber of this valve is vented at port 1, which should only be used as a tank port due to its direct influence on the spool and spring mechanism under pressure conditions. Releasing the actuator causes the valve to automatically return to its neutral position due to the spring return design, enhancing safety and usability in various applications. Constructed with a hardened spool and cage, the MP0834X offers extended durability and resistance to wear in demanding environments. It operates efficiently with pressures up to 14 bar (200 psi) at port 1. The compact design adheres to industry-common cavity specifications, making it suitable for integration into a wide range of equipment without requiring extensive modifications. Additionally, an optional rotational lock position adds further flexibility and security for specific application needs. This combination of features makes the Hydraforce 5270384 an ideal choice for precise hydraulic flow control in both industrial machinery and mobile equipment.
