HYDRAFORCE
5271450

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

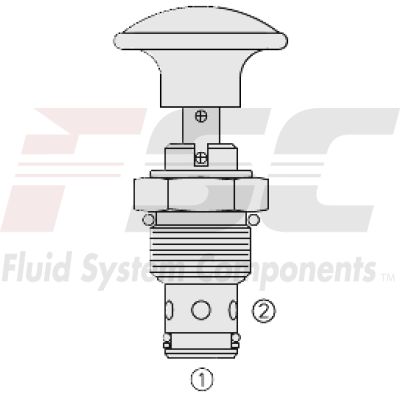

The Hydraforce MP10-21-0-N (5271450) is a manually operated, 2-way directional hydraulic valve designed for precise control in hydraulic systems. This screw-in, cartridge-style valve allows for manual pull-to-open and push-to-close operations, making it versatile for various applications. The valve features a hardened seat to ensure long life and minimal leakage, supporting its use in environments where durability and reliability are critical. With a pressure rating of up to 207 bar (3000 psi) and a flow capacity of 56.8 liters per minute (15 gallons per minute), the MP10-21-0-N is capable of handling substantial hydraulic loads. The valve operates efficiently within a fluid temperature range of -40 to +100 degrees Celsius with Buna N seals, -26 to +204 degrees Celsius with Viton seals, and -54 to +107 degrees Celsius with polyurethane seals. These temperature ranges make it suitable for varying operational climates and conditions. The valve is designed to work with mineral-based or synthetic hydraulic fluids with lubricating properties, accommodating fluid viscosities ranging from 7.4 to 420 cSt. It maintains performance integrity even under maximum operating contamination levels specified by ISO 4406:2018/14. The unit's compact design includes an internal wetted surface area of 83.2 cm² (12.9 in²) and weighs only 0.11 kg (0.25 lb), ensuring it does not add significant weight or bulk to system assemblies. Installation specifications for the MP10-21-0-N are straightforward due to its industry-common cavity VC102 design which fits standard 10-size 2-way cavities without orientation restrictions, offering flexibility in system design and maintenance ease. The recommended cartridge installation torque is between 32.5 to 35.3 Nm (24 to 26 ft-lb), ensuring secure fitting without overtightening. In conclusion, the Hydraforce MP10-21-0-N offers robust performance for hydraulic systems requiring reliable manual control valves that can withstand demanding operational conditions while maintaining precision and leak resistance.
