HYDRAFORCE
5271600V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

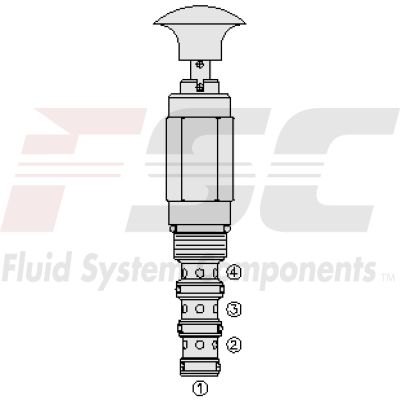

The Hydraforce 5271600V (5271600V) is a versatile MP1040X model, a 4-way, manual, 2-position hydraulic cartridge valve designed with a pull-to-shift mechanism and a spring return feature that includes a locking option. This directional valve is engineered to efficiently control the flow of hydraulic fluid within various systems. In its neutral setting, the valve channels flow from port 3 to port 2 and from port 4 to port 1. Upon actuation by pulling, it reverses the direction—routing fluid from port 3 to port 4 and from port 2 to port 1. Transition stages leave all ports open, ensuring continuous flow. Notably, the valve’s spring chamber is vented at port 1, which influences the spool and spring through direct pressure at this port. The design incorporates a hardened spool and cage ensuring durability and extended operational life even under demanding conditions. It effectively maintains closure up to a backpressure of 14 bar (200 psi), highlighting its robust performance capabilities. Additionally, an optional rotational lock enhances its functionality by providing positional stability during operation. This product fits an industry-common cavity which simplifies integration into existing systems without the need for extensive modifications or custom parts. The MP1040X’s straightforward manual operation combined with its reliable performance characteristics makes it suitable for applications requiring precise control over hydraulic flow with manual input.
