HYDRAFORCE
5278182

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

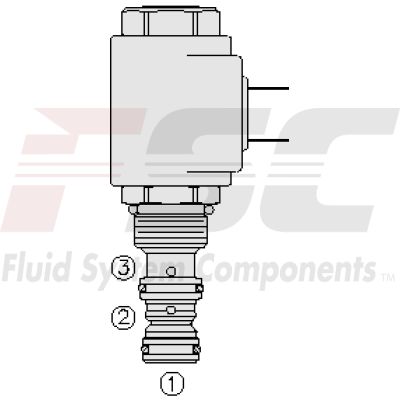

The Hydraforce 5278182 (5278182) is a high-performance EHPR0833X model, a direct-acting, spool-type, proportional, pressure reducing and relieving valve. This device operates by adjusting the regulated pressure in proportion to the electrical current supplied to its coil. In its default state with no current applied, it allows free flow from port 1 to port 3. When the coil is energized, it connects port 2 to port 1 and increasing the current boosts the controlled reduced pressure accordingly. Should the pressure at port 1 exceed the level induced by the coil's setting, it automatically relieves this excess pressure back to port 3. This valve is designed with several notable features including standard availability in both 12 and 24-volt coils and an optional manual override for enhanced control flexibility. It also boasts an industry-common cavity which facilitates compatibility and integration into various systems. For environments requiring robust durability, there are optional waterproof E-Coils available that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. This model also includes a manual override operation that engages at approximately two-and-a-quarter turns, building up pressure at a rate of about 11.7 bar (170 psi) per turn. Given these capabilities and features, the Hydraforce EHPR0833X valve is particularly suitable for applications where precise pressure control is essential and where environmental conditions may demand high levels of protection against elements.
