HYDRAFORCE
5281103

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

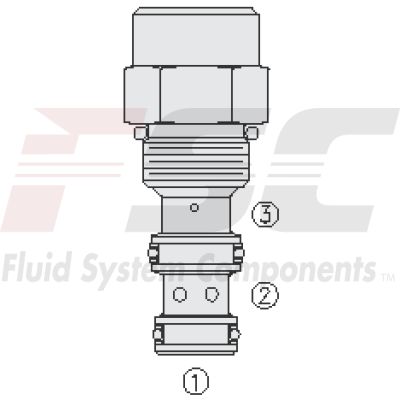

The Hydraforce EP08-35-0-N-110 (5281103) is a screw-in, cartridge-style, spool-type, hydraulic directional element designed for robust performance in a variety of applications. This spring-biased blocking valve facilitates the opening of port 1 to 2 when the pressure at port 1 surpasses the combined pressure at port 3 and the bias spring pressure value. In conditions where there is no pressure at port 3, flow is enabled from port 1 to 2 once the bias spring force is overcome by the pressure at port 1. Notably efficient due to its low-pressure drop and compact size, this valve offers multiple function application potential and fits an industry-common cavity, making it versatile for integration into various hydraulic systems. It can withstand operating fluid temperatures ranging from -40 to +100 degrees Celsius with Buna N seals, -26 to +204 degrees Celsius with fluorocarbon seals, and -54 to +107 degrees Celsius with polyurethane seals. The EP08-35-0-N-110 is capable of handling pressures up to 345 bar (5000 psi) and has a maximum internal leakage of 164 ml/min at 207 bar (3000 psi). The unit's wetted surface area measures approximately 101 cm² and it weighs about 0.1 kg. For installation, it utilizes a VC083 cavity and can be installed with torque ranging from 25.8 to 28.5 Nm. There are no orientation restrictions in its installation, allowing for flexible system design considerations. Additionally, seal kits such as SK083XMM are available for this model along with instructions for proper installation ensuring long-term reliability and performance within specified operational parameters.
