- Material:5281126

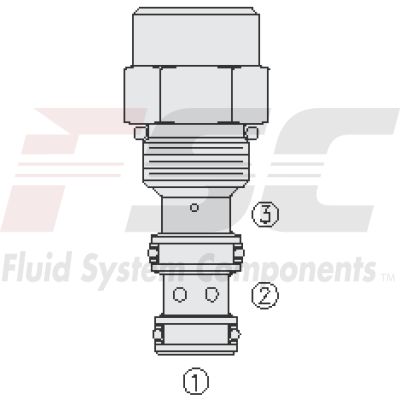

- Model:EP08-35-6T-N-110 LOGIC ELEMENT
- Summary:DIRECTIONAL ELEMENT, PILOTED
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce EP08-35-6T-N-110 (5281126) is a screw-in, cartridge-style, spool-type hydraulic directional element designed for high-performance fluid control in hydraulic systems. This spring-biased blocking valve efficiently directs flow from port 1 to port 2 when the pressure at port 1 surpasses the combined pressures at port 3 and the bias spring. In scenarios where there is no pressure at port 3, the valve allows flow from port 1 to port 2 once the bias spring force is exceeded by the pressure at port 1. This model boasts multiple application potentials due to its versatile design and features such as low pressure drop and compact size, making it suitable for a variety of hydraulic applications. The EP08-35-6T-N-110 operates effectively within a pressure rating of up to 345 bar (5000 psi) and accommodates a range of operating fluid temperatures from -40°C to +100°C with Buna N seals, enhancing its utility across different environmental conditions. The unit's maximum internal leakage is limited to 164 ml/min at a pressure of 207 bar (3000 psi), ensuring efficient operation and minimal fluid loss. It supports mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. Furthermore, it maintains performance integrity up to a maximum contamination level of ISO 4406:2018/14. Installation flexibility is provided by an industry-common cavity VC083 suitable for size-08/3-way configurations, with no orientation restrictions on cartridge installation which requires torque between 25.8 to 28.5 Nm (19 to 21 ft-lb). Optional accessories include various seal kits like SK083XMM tailored for specific sealing needs and corresponding installation instructions, along with compatible housings for complete valve assembly setups.
The Hydraforce EP08-35-6T-N-110 (5281126) is a screw-in, cartridge-style, spool-type hydraulic directional element designed for high-performance fluid control in hydraulic systems. This spring-biased blocking valve efficiently directs flow from port 1 to port 2 when the pressure at port 1 surpasses the combined pressures at port 3 and the bias spring. In scenarios where there is no pressure at port 3, the valve allows flow from port 1 to port 2 once the bias spring force is exceeded by the pressure at port 1. This model boasts multiple application potentials due to its versatile design and features such as low pressure drop and compact size, making it suitable for a variety of hydraulic applications. The EP08-35-6T-N-110 operates effectively within a pressure rating of up to 345 bar (5000 psi) and accommodates a range of operating fluid temperatures from -40°C to +100°C with Buna N seals, enhancing its utility across different environmental conditions. The unit's maximum internal leakage is limited to 164 ml/min at a pressure of 207 bar (3000 psi), ensuring efficient operation and minimal fluid loss. It supports mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. Furthermore, it maintains performance integrity up to a maximum contamination level of ISO 4406:2018/14. Installation flexibility is provided by an industry-common cavity VC083 suitable for size-08/3-way configurations, with no orientation restrictions on cartridge installation which requires torque between 25.8 to 28.5 Nm (19 to 21 ft-lb). Optional accessories include various seal kits like SK083XMM tailored for specific sealing needs and corresponding installation instructions, along with compatible housings for complete valve assembly setups.
Unit weight:
0.1 kg (0.22 lb)
Internal wetted surface area:
101 cm² (15.6 in²)
| Ratings | Pressure Ratings Pressure rating: 345 bar (5000 psi) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 164 ml/min (10 in³/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-3 08-size-3-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 54.2 N-m (40 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION EP08-35D-H-J-R D Cage Option D BLANK Standard Cage D G Meteering (staggered holes) H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 10 10 psi Bias Spring R 40 40 psi Bias Spring R 80 80 psi Bias Spring R 110 110 psi Bias Spring R 150 150 psi Bias Spring |
Seal kit:
SK08-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
08-3w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
