HYDRAFORCE
5282700

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

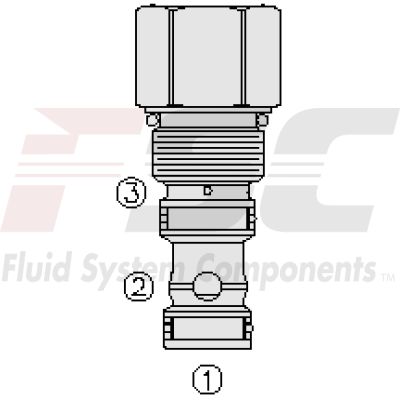

The Hydraforce ER10-S30-0-N (5282700) is a high-performance, screw-in, cartridge-style, spool-type, spring-biased, pressure-reducing logic element designed for advanced hydraulic systems. This valve operates as a pressure-reducing element in conjunction with a pilot relief valve connected to port 3. It features an efficient flow path from the inlet at port 2 to the outlet at port 1 with minimal pressure drop when the pilot relief valve is closed. Upon reaching a pre-set pressure at port 1, the spool shifts to modulate and maintain the outlet pressure equal to the preset pilot pressure at port 3. This model is built for durability and reliability with hardened spool and cage components. Additionally, it offers an option for corrosion-resistant plating making it suitable for harsh environments. The ER10-S30-0-N can handle pressures up to 350 bar (5000 psi) and operates effectively within a fluid temperature range of -40°C to +100°C with standard seals, extending up to +204°C with fluorocarbon seals. Its compact design adheres to industry-common size standards making it versatile for various installation needs. Hydraforce's ER10-S30-0-N is also equipped with multiple seal options ensuring compatibility with different fluid types including mineral-based or synthetic hydraulic fluids. The unit's design allows for easy installation in VC10S3 cavities without orientation restrictions and requires a torque between 32.6 to 35.4 Nm for cartridge installation. This valve is ideal for applications requiring precise control over pressure reduction in hydraulic circuits, ensuring optimal performance and protection of downstream components.
