- Model:EP16-S35T-0-V-160 LOGIC ELEMENT
- Summary:DIRECTIONAL ELEMENT, PILOTED
Due to extremely high demand, please call 920-337-0234 for availability

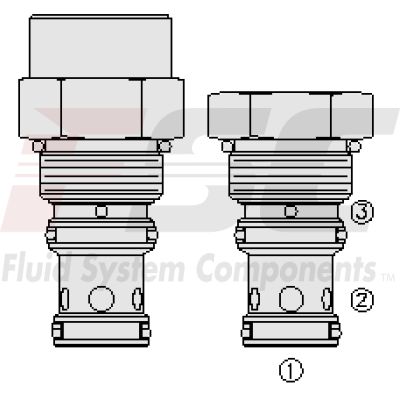

The Hydraforce 5284103 (5284103) is a high-performance, screw-in cartridge style hydraulic directional valve, specifically designed as a pilot-to-close element. This valve operates as a spring-biased blocking valve, which transitions to allow full flow from port 1 to port 2 only when the pressure at port 1 surpasses the combined pressure at port 3 and the bias spring pressure. The model is engineered for versatility with multiple function application potential, ensuring it can be adapted to various hydraulic systems. It features a low pressure drop and utilizes an industry-common cavity, making it suitable for standardization across different equipment. Additionally, it offers options for manual overrides with bias springs available in pressures of 90, 110, 160, and 240 psi. This flexibility allows for tailored control settings based on specific operational requirements and conditions. The Hydraforce 5284103 is thus ideal for applications requiring reliable directional control and efficient fluid power management within hydraulic systems.
Unit weight:
0.29 kg (0.63 lb)
Ep16-s35x-0-x-70
0.41 kg (0.91 lb)
Ep16-s35tx-0-x-160
0.72 kg (1.58 lb)
Ep16-s35tx-0-x-240
0.57 kg (1.26 lb)
Ep16-s35tmx-0-x-160
0.86 kg (1.90 lb)
Ep16-s35tmx-0-x-240
0.62 kg (1.36 lb)
Ep16-s35tmcx-0-x-160
0.91 kg (2.01 lb)
Ep16-s35tmcx-0-x-240
Internal wetted surface area:
221 cm² (34.25 in²)
Ep16-s35x-0-x-70
290 cm² (44.92 in²)
Ep16-s35tx-0-x-160
372 cm² (57.59 in²)
Ep16-s35tx-0-x-240
292 cm² (45.30 in²)
Ep16-s35tmx-0-x-160
367 cm² (56.91 in²)
Ep16-s35tmx-0-x-240
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 164 ml/min (10 in³/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC16-S3 16-size-3-way Cavities Cartridge installation torque: 62.4 to 73.2 N-m (46 to 54 ft-lb) Maximum allowable torque: 136 N-m (100 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION EP16-S35CDF-H-J-R C Adaptor Option C BLANK Standard Cap C T Tall Cap D Cage Option D BLANK Standard Cage D G Metering (staggered holes) F Stroke Limiter F BLANK Standard F M Stroke Limiter F MC Stroke Limiter with Cover Cap H Line Body H 0 No Body H 16T Aluminum SAE 16 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 10 10 psi Bias Spring R 20 20 psi Bias Spring R 40 40 psi Bias Spring R 70 70 psi Bias Spring R 90 90 psi Bias Spring R 110 110 psi Bias Spring R 160 160 psi Bias Spring R 240 240 psi Bias Spring |
Seal kit:
SK16-S3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
16-3w valve bodies
