HYDRAFORCE
5404400
$82.14 USD
- HYDRAFORCE
- Material:5404400
- Model:FC08-20F-6T-N-A10 FLOW CONTROL
- Summary:FLOW CONTROL VALVE WITH REVERSE FLOW CHECK
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

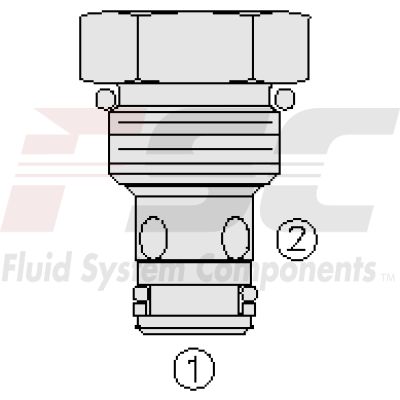

The Hydraforce 5404400 (5404400) is a screw-in, cartridge-style restrictor-check valve designed for versatile hydraulic applications. As a dual-function valve, it operates effectively by restricting flow in the 2 to 1 direction while allowing free flow in the opposite direction, from 1 to 2. This model features a hardened spool and cage which significantly enhance its durability and lifespan, suitable for systems requiring reliable, long-term performance. The compact design of the FC0820F ensures that it fits seamlessly into industry-common cavities, making it an ideal choice for integration into various hydraulic circuits without requiring extensive modifications or specialized accommodations. This combination of functionality and robust construction makes the Hydraforce 5404400 an essential component in optimizing hydraulic system efficiency while ensuring operational reliability.
The Hydraforce 5404400 (5404400) is a screw-in, cartridge-style restrictor-check valve designed for versatile hydraulic applications. As a dual-function valve, it operates effectively by restricting flow in the 2 to 1 direction while allowing free flow in the opposite direction, from 1 to 2. This model features a hardened spool and cage which significantly enhance its durability and lifespan, suitable for systems requiring reliable, long-term performance. The compact design of the FC0820F ensures that it fits seamlessly into industry-common cavities, making it an ideal choice for integration into various hydraulic circuits without requiring extensive modifications or specialized accommodations. This combination of functionality and robust construction makes the Hydraforce 5404400 an essential component in optimizing hydraulic system efficiency while ensuring operational reliability.
Unit weight:
0.10 kg (0.20 lb)
Internal wetted surface area:
206 cm² (31.9 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: See performance graph Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per iso4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 24.5 to 27.2 N-m (18 to 20 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION FC08-20F-H-J-PR H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane P Equivalent Orifice Size P A 0.030 in P B 0.033 in P C 0.038 in P D 0.042 in P E 0.053 in P F 0.056 in P G 0. 47 in P H 0. 28 in R Spring Value R 10 0.7 bar (10 psi) |
Seal kit:
SK08-2X-T (x = seal option)
X = seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
