HYDRAFORCE
5413606

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

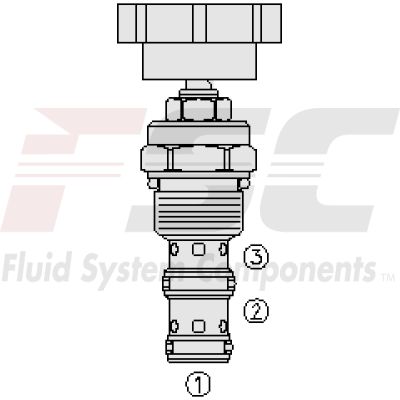

The Hydraforce FR10-39A-0-N-XXXX (5413606) is an adjustable, pressure-compensated flow control valve designed for precise fluid handling in hydraulic systems. This model functions effectively either as a priority type flow regulator or as a restrictive type, 2-way flow regulator when the bypass line port 2 is blocked. It ensures consistent regulated flow regardless of pressure variations at the regulated or bypass port, with regulated flow increasing from closed to fully open via clockwise rotation of the adjusting screw. The FR10-39A-0-N-XXXX features a fully pressurizable bypass port 2, fine low-torque adjustment capabilities, and hardened steel components that contribute to its durability and long service life. Its design facilitates quiet, modulated responses and fits industry-common cavity VC103. The valve's performance specifications include a pressure rating up to 3500 psi and flow ratings that vary depending on configuration: 9.0 gpm for regulated 2-ported systems and up to 15.0 gpm for maximum inlet flow in 3-ported systems. Temperature tolerance ranges from -40 to +250 degrees Fahrenheit with Buna N seals, indicating suitability across various operating environments. The unit also supports a broad range of fluid viscosities from 7.4 to 420 cSt and can handle maximum operating contamination levels as specified by ISO4406 standards. Additional features include corrosion protection with a salt spray resistance per ASTM B117 for up to 960 hours, making it robust against harsh conditions. Installation specifications are straightforward with no orientation restrictions and recommended cartridge installation torque between 24 to 26 Nm, ensuring ease of integration into existing systems without extensive modifications.
