- Model:EC10-32-6T-N-150 COMPENSATOR
- Summary:FLOW ON DEMAND PRESSURE COMPENSATING ELEMENT WITH STATIC LOAD SENSE
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

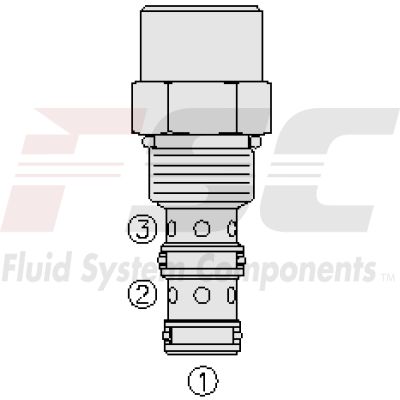

The Hydraforce EC10-32-6T-N-150 (5418510) is a sophisticated screw-in, cartridge-style hydraulic valve that serves as a load sense, flow-on-demand pressure compensator. Designed for dynamic performance, this model ensures that the outlet at port 3 delivers the required flow irrespective of the load pressure detected at port 1. It features a recommended 0.021 in (0.53 mm) orifice installed in the load sense line at port 1 to enhance stability during operation. Constructed with hardened parts, the EC10-32-6T-N-150 promises durability and a long service life while maintaining a quiet and modulated response under varying conditions. It is compatible with industry-standard cavity VC103, facilitating ease of installation across various hydraulic systems without orientation restrictions. The unit can be installed with a torque ranging from 34 to 37 Nm and can withstand up to 68 Nm for certain spring options. This model operates effectively within a fluid temperature range of -40°C to +100°C when equipped with Buna N seals, and up to +204°C with fluorocarbon seals, making it versatile across different operational environments. It handles mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt and is designed to cope well with contamination levels up to ISO 4406:18/16/13. Flow rates vary according to compensating spring settings, ranging from 5 GPM up to an impressive 15 GPM, thus supporting various application needs from simple machinery to more complex hydraulic setups requiring precise pressure adjustments and flow management. This valve not only enhances machine efficiency but also contributes significantly towards energy conservation by ensuring optimal system performance through its advanced pressure compensating design.
The Hydraforce EC10-32-6T-N-150 (5418510) is a sophisticated screw-in, cartridge-style hydraulic valve that serves as a load sense, flow-on-demand pressure compensator. Designed for dynamic performance, this model ensures that the outlet at port 3 delivers the required flow irrespective of the load pressure detected at port 1. It features a recommended 0.021 in (0.53 mm) orifice installed in the load sense line at port 1 to enhance stability during operation. Constructed with hardened parts, the EC10-32-6T-N-150 promises durability and a long service life while maintaining a quiet and modulated response under varying conditions. It is compatible with industry-standard cavity VC103, facilitating ease of installation across various hydraulic systems without orientation restrictions. The unit can be installed with a torque ranging from 34 to 37 Nm and can withstand up to 68 Nm for certain spring options. This model operates effectively within a fluid temperature range of -40°C to +100°C when equipped with Buna N seals, and up to +204°C with fluorocarbon seals, making it versatile across different operational environments. It handles mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt and is designed to cope well with contamination levels up to ISO 4406:18/16/13. Flow rates vary according to compensating spring settings, ranging from 5 GPM up to an impressive 15 GPM, thus supporting various application needs from simple machinery to more complex hydraulic setups requiring precise pressure adjustments and flow management. This valve not only enhances machine efficiency but also contributes significantly towards energy conservation by ensuring optimal system performance through its advanced pressure compensating design.
Unit weight:
0.16 kg (0.35 lb)
Internal wetted surface area:
145 cm² (22.4 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: 18.9 lpm (5.0 gpm) With 2.8 bar (40 psi)compensating spring 28.0 lpm (7.5 gpm) With 5.5 bar (80 psi)compensating spring 38.1 lpm (10 gpm) With 10.3 bar (150 psi)compensating spring 57.0 lpm (15 gpm) With 17.2 bar (250 psi)compensating spring Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (model number - gec10-32) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 34 to 37 N-m (25 to 27 ft-lb) Maximum allowable torque: 68 N-m (50 ft-lb) For 40,80, and 150 psi spring options only Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION EC10-32-H-J-R H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Compensator Spring R 40 40 Compensator Spring R 80 80 Compensator Spring R 150 150 Compensator Spring R 250 250 Compensator Spring |
Seal kit:
SK10-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
