HYDRAFORCE
5418525

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

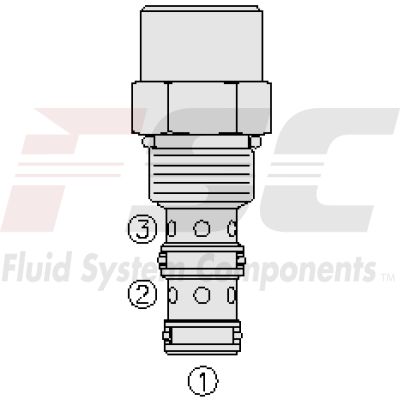

The Hydraforce EC10-32-0-N-250 (5418525) is a screw-in, cartridge-style, load sense, flow on demand, pressure compensator designed for high-performance hydraulic systems. This model operates by delivering the required flow at port 3 when inlet flow is present at port 2, irrespective of the load pressure sensed at port 1. A 0.021 in (0.53 mm) orifice is recommended at port 1 to enhance stability during operation. The device features hardened parts ensuring longevity and a quiet, modulated response suitable for various applications. The EC10-32-0-N-250 can handle a maximum pressure of up to 3500 psi and supports different flow rates ranging from 5 gpm with a compensating spring of 40 psi up to 15 gpm with a compensating spring of 250 psi. It is compatible with mineral-based or synthetic hydraulic fluids and operates efficiently within a fluid viscosity range of 7.4 to 420 cSt. The unit's operational fluid temperature spans from -40°C to +100°C with buna N seals, making it versatile for different working environments. For installation, this model uses the industry-common cavity VC103 and requires no specific orientation, allowing flexibility in system design. The cartridge installation torque is specified between 34 to 37 Nm, ensuring secure fitting without over-torquing which is capped at 68 Nm for certain spring options. Overall, the Hydraforce EC10-32-0-N-250 offers robust performance for demanding hydraulic applications where precise flow control and pressure compensation are critical. Its design accommodates various environmental conditions and fluid types, adding to its adaptability in diverse hydraulic systems.
