- Material:5421301
- Model:NV12-20D-0-V NEEDLE VALVE
- Summary:NEEDLE VALVE
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

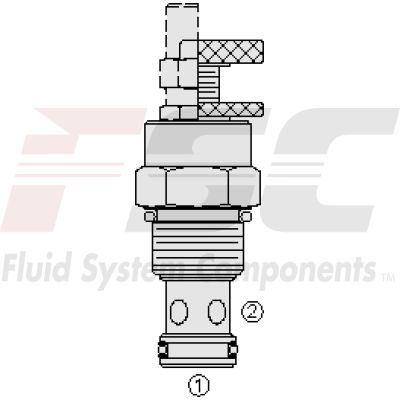

The Hydraforce 5421301 (5421301) is a screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve designed to precisely control fluid flow in hydraulic systems. The operation of the NV1220 model within this valve allows for an increase in orifice size from fully closed to fully open with a counterclockwise adjustment rotation. This feature ensures a linear and smooth adjustment of flow, which can be critical in applications requiring precise control over hydraulic operations. The valve is engineered with several key features that enhance its functionality and durability. Adjustments made to the valve's settings cannot be backed out unintentionally, ensuring consistent performance and reducing the risk of malfunctions due to setting displacements. For added security and precision, desired settings may be locked down, preventing accidental adjustments during operation. The construction of the valve includes hardened parts which extend the life of the component by resisting wear and tear even under harsh conditions. Additionally, an aluminum knob option is available for those who require a lightweight yet durable external control element. The positive shutoff capability of this model provides an efficient means to completely stop fluid flow when necessary, adding an extra layer of control and safety. Its cost-effective cavity design not only aids in reducing installation costs but also simplifies maintenance procedures. Overall, the Hydraforce 5421301 offers robust performance characteristics suitable for various hydraulic applications where flow restriction and precise adjustment are necessary. Its reliable construction and thoughtful design features make it a valuable component in enhancing system efficiency and longevity.
The Hydraforce 5421301 (5421301) is a screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve designed to precisely control fluid flow in hydraulic systems. The operation of the NV1220 model within this valve allows for an increase in orifice size from fully closed to fully open with a counterclockwise adjustment rotation. This feature ensures a linear and smooth adjustment of flow, which can be critical in applications requiring precise control over hydraulic operations. The valve is engineered with several key features that enhance its functionality and durability. Adjustments made to the valve's settings cannot be backed out unintentionally, ensuring consistent performance and reducing the risk of malfunctions due to setting displacements. For added security and precision, desired settings may be locked down, preventing accidental adjustments during operation. The construction of the valve includes hardened parts which extend the life of the component by resisting wear and tear even under harsh conditions. Additionally, an aluminum knob option is available for those who require a lightweight yet durable external control element. The positive shutoff capability of this model provides an efficient means to completely stop fluid flow when necessary, adding an extra layer of control and safety. Its cost-effective cavity design not only aids in reducing installation costs but also simplifies maintenance procedures. Overall, the Hydraforce 5421301 offers robust performance characteristics suitable for various hydraulic applications where flow restriction and precise adjustment are necessary. Its reliable construction and thoughtful design features make it a valuable component in enhancing system efficiency and longevity.
Adjustment torque:
0.3 to 0.6 N-m (3to 5 in-lb)
At 241 bar (3500 psi)
Unit weight:
0.23 kg (0.50 lb)
Option A
Internal wetted surface area:
94 cm² (14.6 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: See pressure drop vs. flow chart Maximum internal leakage: 0.15 ml/min (3 drops/min) At shut-off Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals -40 to 149 °C (-40 to 300 °F) With HNBR seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per iso4406 |
| Performance |   |
| Installation Specifications | Cavity:
VC12-2 or HNV12-2 12-size-2-way Cavities Cartridge installation torque: 122 to 136 N-m (90 to 100 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION NV12-20F-H-J F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F D 1-1/2" Diameter Aluminum Knob with Lock Nut F E 1-1/2" Diameter Aluminum Knob Only F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane |
Seal kit:
SK12-2X-M-115
Buna N, Fluorocarbon, HNBR
SK12-2P-0
Polyurethane
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
