HYDRAFORCE
5429405

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

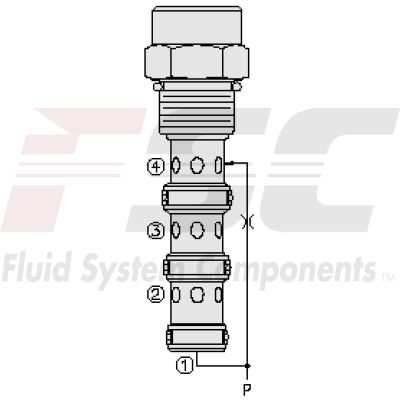

The Hydraforce 5429405 (5429405) is a sophisticated hydraulic component designed for advanced fluid management in hydraulic systems. This screw-in, cartridge-style pressure compensating element is engineered to work in conjunction with a remote fixed or variable orifice, forming a three-port bypass type, pressure-compensated, flow regulating valve. The primary function of the EC1240 model is to maintain a constant flow rate from port 3, irrespective of any load pressure changes occurring downstream of this port. It achieves this by maintaining a consistent differential pressure from circuit point P to port 3, effectively regulating the hydraulic flow rate between these two points. Notably, the EC1240 operates as a priority type regulator. This means it prioritizes delivering pump flow first to port 3 before bypassing any excess to port 2. This feature is particularly beneficial in applications requiring precise flow management and prioritization. Additionally, all ports on the EC1240 can be fully pressurized, enhancing its versatility across various hydraulic setups. Durability and performance are assured with hardened parts that promise long life and reliability even under demanding conditions. Users also benefit from its quiet, modulated response that contributes to smoother operation and reduced system noise. The design incorporates a cost-effective cavity that aids in reducing overall expenses while maintaining high performance and reliability. Overall, the Hydraforce 5429405 offers an effective solution for managing hydraulic flows with precision and efficiency.
