HYDRAFORCE
5436133
$139.57 USD
- HYDRAFORCE
- Material:5436133
- Model:FD50-44-0-N-33 FLOW DIVIDER
- Summary:FLOW DIVIDER/COMBINER
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5436133 (5436133) is a screw-in cartridge, spool type flow divider/combiner valve designed for advanced hydraulic systems. This model, known as the FD5044, efficiently provides pressure-compensated proportional division of inlet flow or combines two return flows, maintaining performance stability across varying system pressures. It is engineered specifically for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties, ensuring smooth operation and longevity of the valve. The FD5044 features a wide selection of flow ranges to accommodate different application requirements and ensures a quiet, modulated response to changes in flow demand. Its ability to operate over a broad flow range while maintaining accurate division or combination of flows makes it highly versatile and suitable for diverse hydraulic applications. Additionally, the FD50443 offers optional corrosion-resistant plating to enhance durability in harsh environments. The valve also benefits from an industry-common cavity design which facilitates easy installation and compatibility with existing hydraulic systems. This combination of features makes the Hydraforce 5436133 an essential component for efficient fluid management in sophisticated hydraulic setups.
The Hydraforce 5436133 (5436133) is a screw-in cartridge, spool type flow divider/combiner valve designed for advanced hydraulic systems. This model, known as the FD5044, efficiently provides pressure-compensated proportional division of inlet flow or combines two return flows, maintaining performance stability across varying system pressures. It is engineered specifically for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties, ensuring smooth operation and longevity of the valve. The FD5044 features a wide selection of flow ranges to accommodate different application requirements and ensures a quiet, modulated response to changes in flow demand. Its ability to operate over a broad flow range while maintaining accurate division or combination of flows makes it highly versatile and suitable for diverse hydraulic applications. Additionally, the FD50443 offers optional corrosion-resistant plating to enhance durability in harsh environments. The valve also benefits from an industry-common cavity design which facilitates easy installation and compatibility with existing hydraulic systems. This combination of features makes the Hydraforce 5436133 an essential component for efficient fluid management in sophisticated hydraulic setups.
Unit weight:
0.11 kg (0.25 lb)
Internal wetted surface area:
164 cm² (25.4 in²)
| Ratings | Pressure Ratings Pressure rating: 345 bar (5000 psi) Burst pressure: 1034 bar (15000 psi) Flow Ratings Inlet flow rating: 2.0 to 7.0 lpm (0.5 to 1.8 gpm) Model code 99 2.5 to 9.5 lpm (0.7 to 2.5 gpm) Model code 11 4 to 19 lpm (1.0 to 5.0 gpm) Model code 22 7.5 to 38 lpm (2.0 to 10.0 gpm) Model code 44 Synchronizing flow: Approximately 10% of maximum inlet flow Flow accuracy: 5 % Of inlet flow at maximum flow rate 10 % Of inlet flow at minimum flow rate Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (model number - gfd50-44) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |

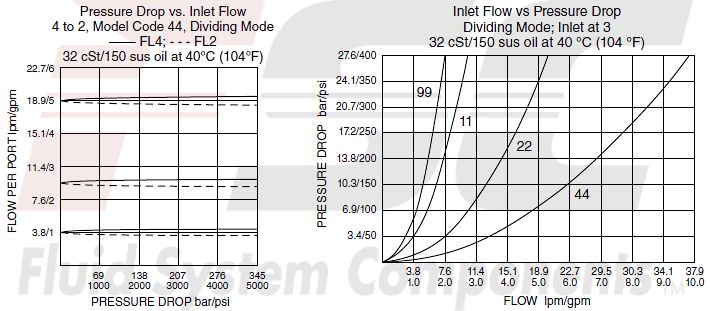

| Performance |  |
| Installation Specifications | Cavity:
VC10-4 10-size-4-way Cavities Cartridge installation torque: 65 to 71 N-m (48 to 52 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION FD50-44-H-J-N H Line Body H 0 No Body H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane N Flow Dividing/Combining N 11 50/50 Rated at 2.5-9.5 lpm (0.7-2.5 gpm) N 22 50/50 Rated at 4.0-19.0 lpm (1.0-5.0 gpm) N 33 Not listed in outline N 44 50/50 Rated at 7.5-38.0 lpm (2.0-10.0 gpm) N 66 Not listed in outline N 99 50/50 Rated at 2.0-7.0 lpm (0.5-1.8 gpm) |
Seal kit:
SK10-4X-MMM
X=seal option
SK10-4U-000
Urethane
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
