HYDRAFORCE
5436589

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

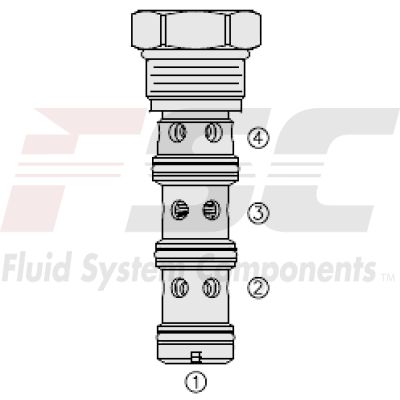

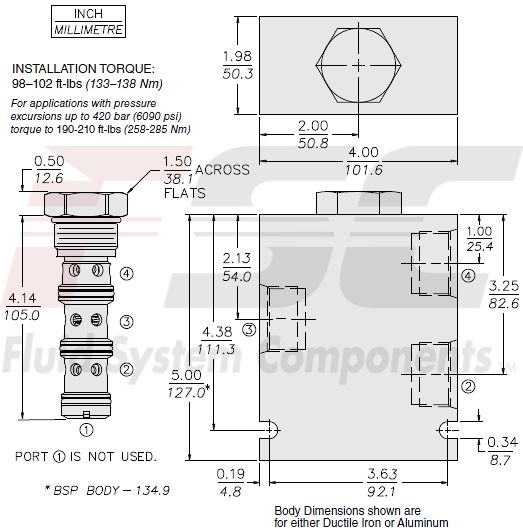

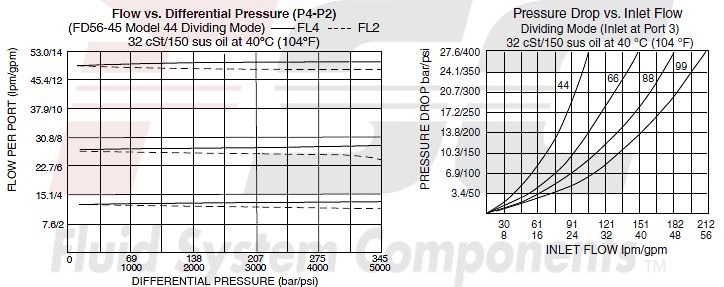

The Hydraforce FD56-45-0-N-89 (5436589) is a screw-in cartridge, spool-type flow divider/combiner valve designed for advanced hydraulic systems requiring reliable flow division or combination. This valve provides pressure-compensated proportional division of inlet flow or combining of two return flows, ensuring consistent performance regardless of system pressure variations. It is particularly effective in applications where synchronization of flow in both dividing and combining modes is critical. Constructed with hardened parts, the FD56-45-0-N-89 offers extended durability and a quiet, modulated response under various conditions. It features a wide operating flow range, supporting inlet flows from 25 to 197 liters per minute depending on the model code. The valve's design includes a floating cage for high installation torque and utilizes an industry common cavity (VC164 or HVC164 for high-pressure applications), allowing for versatile implementation across multiple hydraulic setups. The valve operates efficiently within a fluid temperature range of -40 to +100°C with standard seals and can handle up to 420 bar of pressure, making it suitable for rigorous industrial applications. Its precision in flow control maintains accuracy within ±10% to ±15% depending on the specific model configuration. Additionally, the FD56-45-0-N-89 does not have orientation restrictions during installation, providing flexibility in system design. Optional accessories such as various seal kits tailored for different environmental conditions enhance its adaptability and ease of maintenance.
