HYDRAFORCE
5470101
$70.28 USD
- HYDRAFORCE
- Material:5470101
- Model:HP10-20T-0-V HAND PUMP
- Summary:HAND PUMP
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

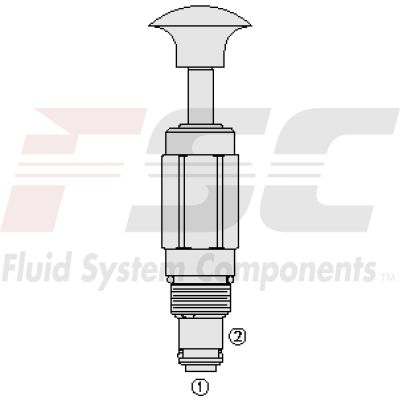

The Hydraforce 5470101 (5470101) is a versatile HP10-20X push and release type hand pump, designed with a return spring and two built-in checks for enhanced reliability. This screw-in cartridge type hand pump is specifically engineered for use with general-purpose hydraulic oils, providing dependable performance in various applications. Notably, the HP10-20X is well-suited for emergency braking or brake release on battery-powered vehicles, ensuring safety and operational efficiency in critical situations. Additionally, it serves as an effective lube pump, highlighting its adaptability across different functions. The thoughtful design of this hand pump ensures ease of use and maintenance, making it a practical choice for those requiring reliable hydraulic solutions in demanding environments.
The Hydraforce 5470101 (5470101) is a versatile HP10-20X push and release type hand pump, designed with a return spring and two built-in checks for enhanced reliability. This screw-in cartridge type hand pump is specifically engineered for use with general-purpose hydraulic oils, providing dependable performance in various applications. Notably, the HP10-20X is well-suited for emergency braking or brake release on battery-powered vehicles, ensuring safety and operational efficiency in critical situations. Additionally, it serves as an effective lube pump, highlighting its adaptability across different functions. The thoughtful design of this hand pump ensures ease of use and maintenance, making it a practical choice for those requiring reliable hydraulic solutions in demanding environments.
Displacement:
1.36 ml (0.083 in³)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Port 1 69 bar (1000 psi) Port 2 Maximum attainable pressure: 17 bar (250 psi) With push force 133 N (30 lbf) Flow Ratings Maximum internal leakage: 0.15 ml/min (3 drops/min) From port 1 to port 2 at 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 120 °C (-40 to 248 °F) |
| Installation Specifications | Cavity: 10-size-2-way Cavities |
| Order Code | POSITION CODE DESCRIPTION HP10-20F-H-J F Adjustment F D Red Plastic Knob F K Black Plastic Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane |
Seal kit:
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
